Product Name : 10G-11-0025-BF (10G/11/0025/BF)
Power Rating : 0.37KW
Phase : Single Phase (230V)
Supply Voltage : 220-240V
Current Rating : 2.5A
Frame Size : Frame 1
Directions



Part No: 10G-11-0025-BF (10G/11/0025/BF)
Phase : Single Phase (230V)
Supply Voltage : 220-240V
Power Rating : 0.37KW
Current Rating : 2.5A
Frame Size : Frame 1
Filter : Fitted

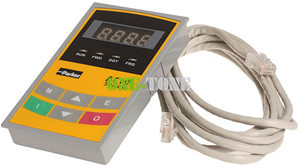

Keypad : Fitted
Brake Switch : Fitted
Description:

Power Supply: 220 ... 240 VAC ±15 % Single Phase

Rated Input Frequency 50/60 Hz

Overload 150 % of Rated Current for 60 s

Output Frequency 0.5…650 Hz

Control Mode Volts/Hertz or Sensorless Vector (SLV) Mode

Part Number: 10G-11-0025-BF  -  Breakdown is as follows:

[1]      : AC10 Series AC Drive

[0G]     : Standalone Module, IP20 Rated

[1]      : 230VAC 1-phase input

[1-0025]: 2.5A / 0.37kW Normal Duty Rating - Frame Size '1'

[B]      : Brake Switch Fitted

[F]      : EMC Filter Option Fitted

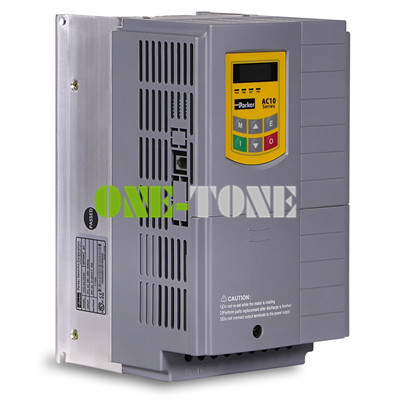

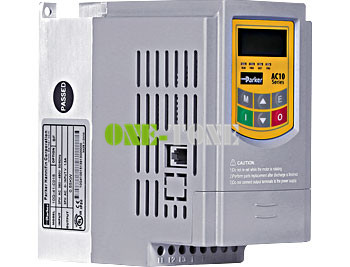

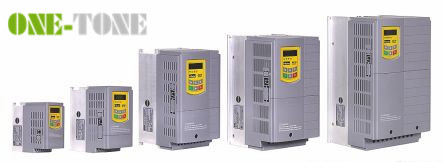

Parker’s new variable frequency AC10 Micro Drive offers straightforward yet adept motor control in everyday applications requiring speed or torque control within the power range of 0.2 to 15 kW. One of the smallest micro drives available, typical applications for AC10 are set to include conveyors, centrifuges, fans, mixers, packaging machines and textile machines to name but a few.

Thanks to its conformally-coated PCBs, AC10 is able to withstand even the most arduous class 3C3 environment, with which many other drives in this class would struggle.

An ideal complement to AC10 is Parker’s MR Series of AC induction motors, which are IE2 efficient and start from a power range of 0.09 kW.

Avaliable I/O is as follows:

Analogue Inputs 2: (0-10 V, 0-5 V, 0-20 mA, 4-20 mA)

Analogue Output 1: (0-10 V, 0-20 mA)

Digital Inputs 5: Nominal 24 VDC

Digital Output 1: Nominal 24 VDC

Relay Output 1: Volt free contact, 5 A @230 VAC max.
