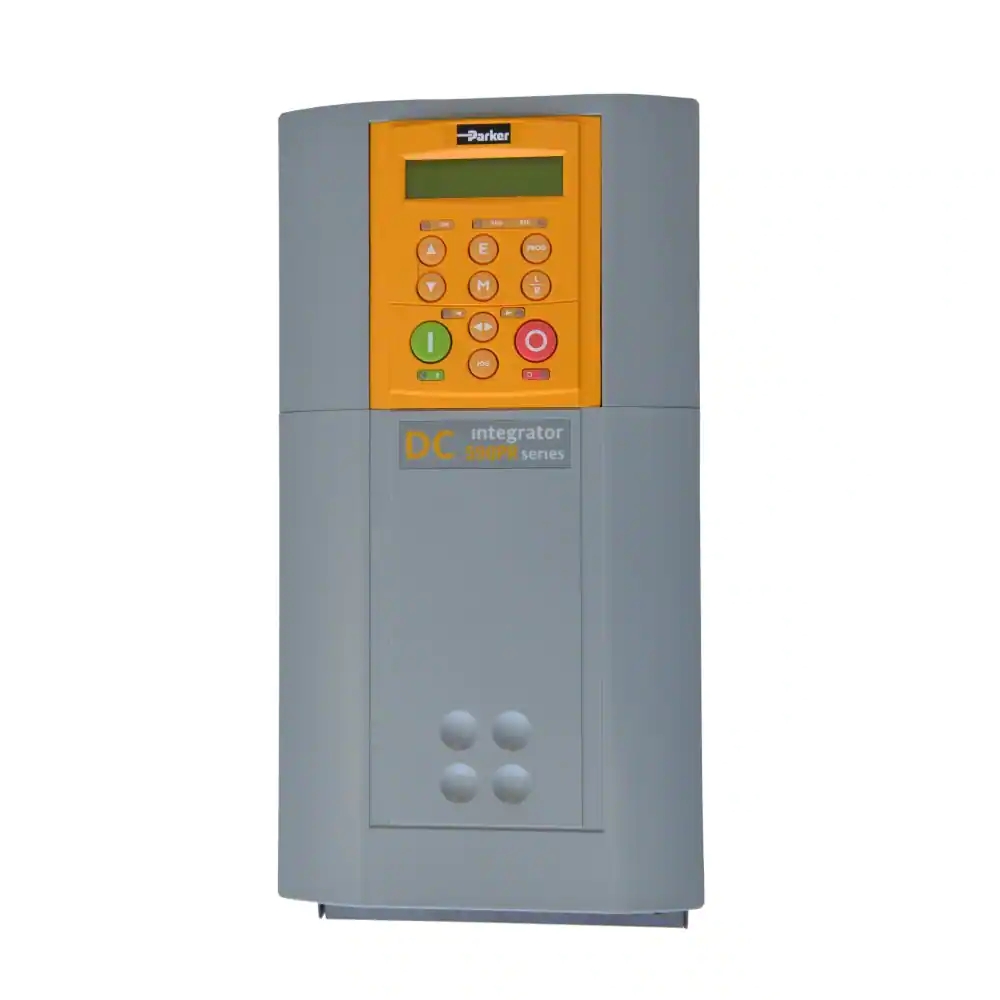

DC590PR a is newly developed compact DC motor drive with outputs up to 165A. It has state-of-the-art advanced 32-bit control architecture and a range of interface options. Armature voltage feedback is standard without the need for any interface option.
Technical Specifications
Drive Type: Two Quadrant / Non-Regenerative
Input Voltage: 3*220-500VAC
Output Current Rating: 45A
Brand: Parker
Product Type: DC Drive
Drive Axis Type: Single Axis Technology
Product Series: DC590PR
Input Voltage: 3*220-500VAC
Continuous Output Current Rating: 45A
Output Power: 25 HP
Compatible Motor Type: DC Brushed Servo
Compatible Feedback Device:Armature Voltage, Tachometer, Encoder
Modes of Control: Two Quadrant / Non-Regenerative
Operating Temperature: 0 - 45C (frame 1) °C, 32 - 113F (frame 1) °F
Operating Altitude: Up to 500m ASL (derate > 500m)
Overload Rating: 150% for 30s 200% for 10s
(depending on drive output current, refer to manual for details)
