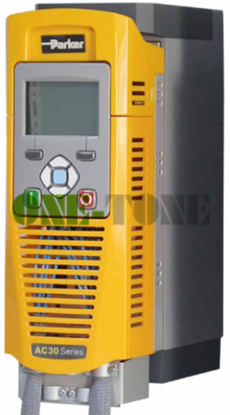

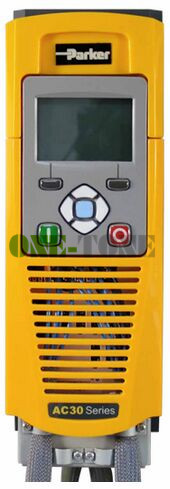

Product Name : 31V-4D0005-BF-2S-0000
Power Rating : 1.5KW
Phase : Three Phase (415V)
Supply Voltage : 400-480V
Current Rating : 4.5A
Frame Size : Frame D
Directions



Part No: 31V-4D0005-BF-2S-0000
Phase : Three Phase (415V)
Supply Voltage : 400-480V
Power Rating : 1.5KW
Current Rating : 4.5A
Frame Size : Frame D
PCB Coating : Standard 3C3 Coating
Filter : Cat C2 (Domestic) EMC Filter
Keypad : Fitted
Description:

4.5A / 1.5kW Normal Duty Rating - Frame Size 'D'

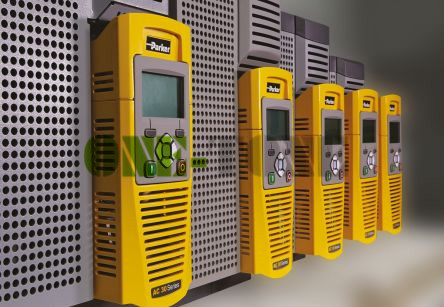

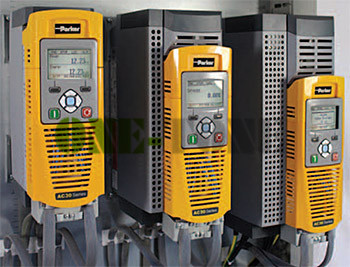

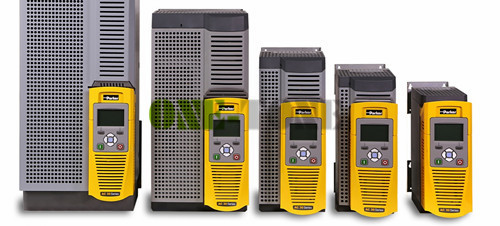

AC30V drive has been designed to provide users with exceptional levels of control for pump, fan and general purpose applications. Its flexible and highly modular construction enables a wide range of communications and I/O modules to be easily added as required.

Rated Input Voltage: 3Ø 380...480VAC ±10%

Input Frequency: 45...65 Hz

Maximum Switching Frequency: 4 kHz up to maximum of 12 kHz

Overload: Heavy Duty: 150 % for 30 seconds - 180% for 0.5 seconds

Overload: Normal Duty: 110 % for 30 seconds - 180% of HD FLC. for 0.5 seconds



control wiring connections



Dimensions -- Panel Mounting


Dimensions -- Through Panel Mounting


Technical Characteristic


Applications
