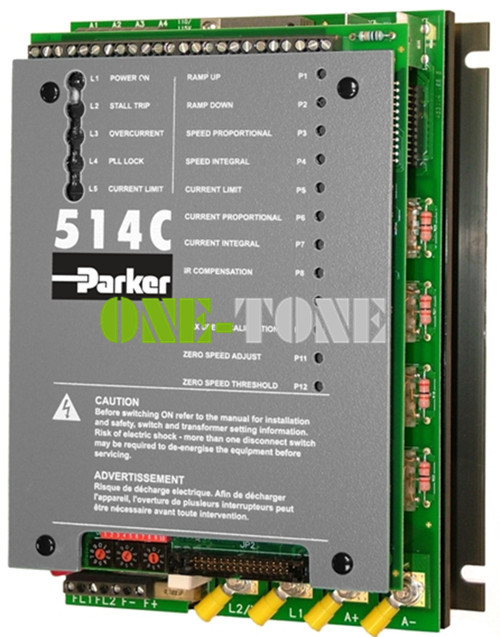

Part No: 514C-08-00-00-00 (514C/08/00/00/00)

Phase : Single Phase (230V)

Supply Voltage : 110-480V

Current Rating : 8.0A

Quadrant : Four Quadrant (Regenerative)

Auxiliary Supply : Switchable 115/230VAC

Description:

The regenerative 514C DC thyristor drive offers full four quadrant control of DC motors from single phase supplies. As such it is ideal for applications involving overhauling loads or where rapid and accurate deceleration is required. Together with the non-regenerative 512C they offer the perfect solution for lower power single motor and multi-drive applications.

Switch selectable supply power:

Single Phase 110Vac ±10%

Single Phase 220Vac ±10%

Single Phase 380Vac ±10%

Single Phase 480Vac ±10%

50-60Hz ±5%

Ambient:

Temperature : 0-40°C

150% for 60 seconds

Motor protection:

Stall condition 15 seconds internal

Electronic Overload Protection

Available frame sizes:

4, 8, 16 and 32 ampere

Block Diagram

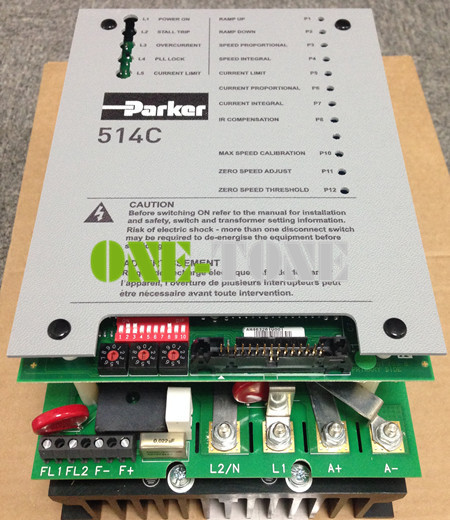

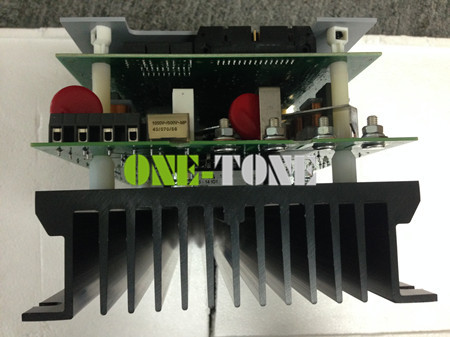

Stock & Application

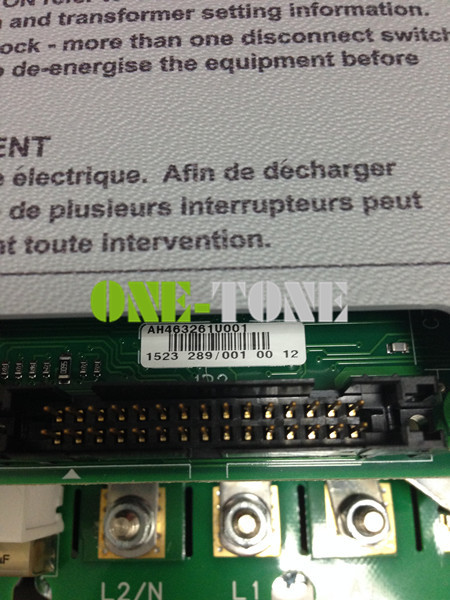

Control Board
