Details
For other communications options for 650V and Profibus equivalent for smaller 650V in Frame Sizes 1-3 - see 6513-PROF-00

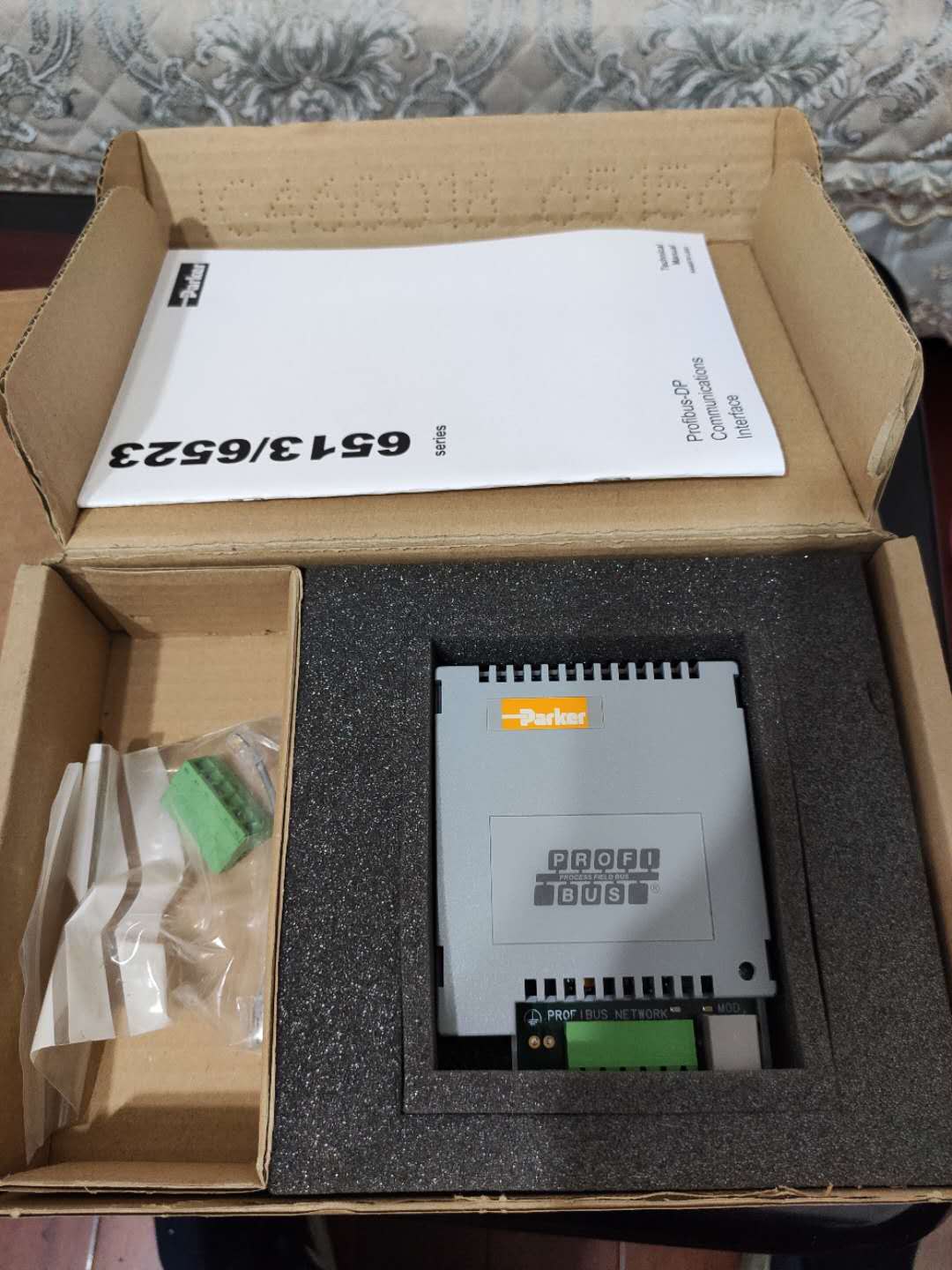

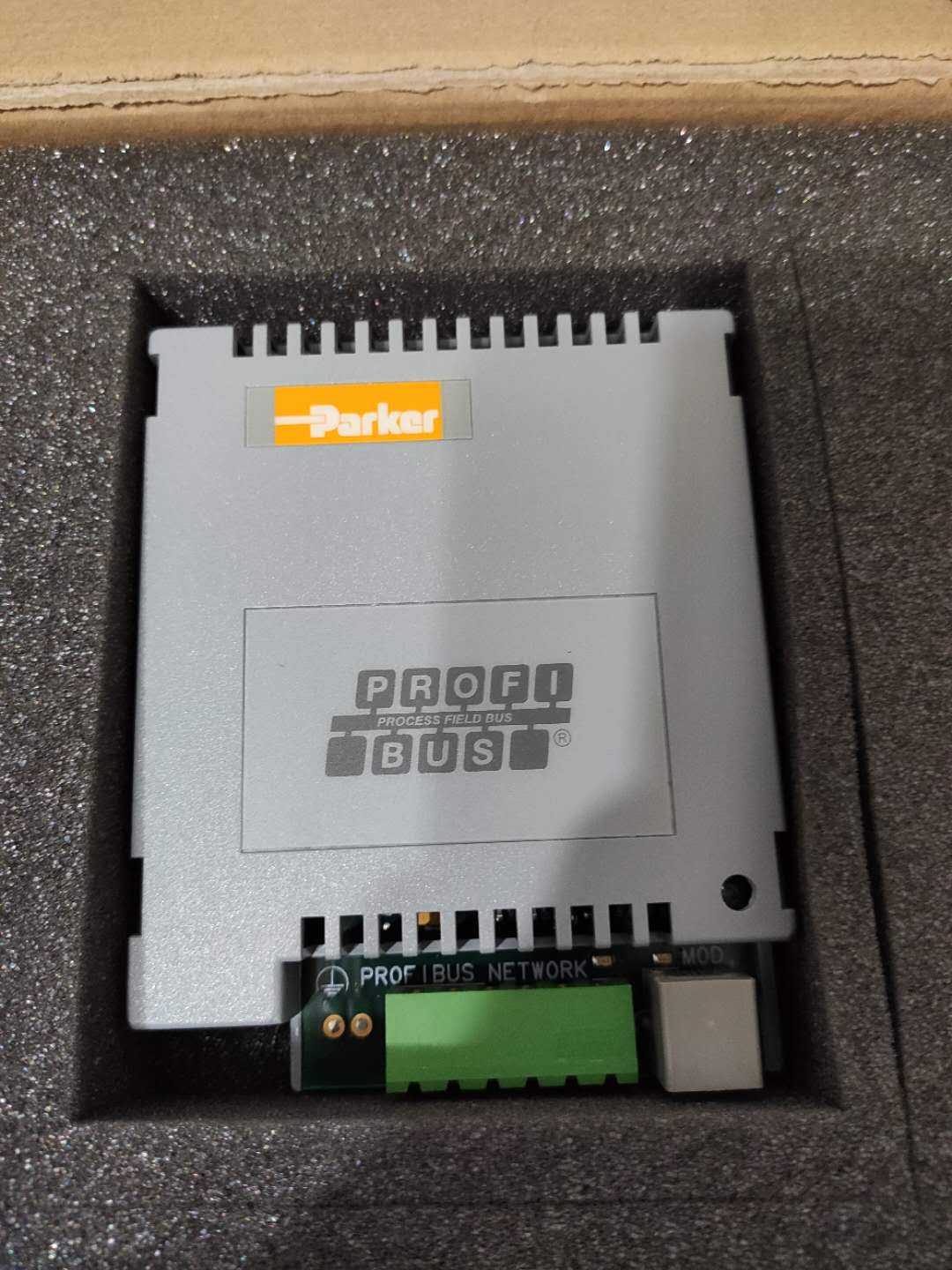

Parker SSD 6523-PROF Profibus-DP Communications card for 650V Inverters with Software version 4.9 onwards and in Frame Sizes C to F.
This interface is designed to be installed in the Inverter option slot and includes a short 4/4 RJ11 lead which should be connected to the RS232 Programming Port on the Control Board. A Captive Screw is also included which allows the card to be connected to the earthing strap on the Inverter Control Board.

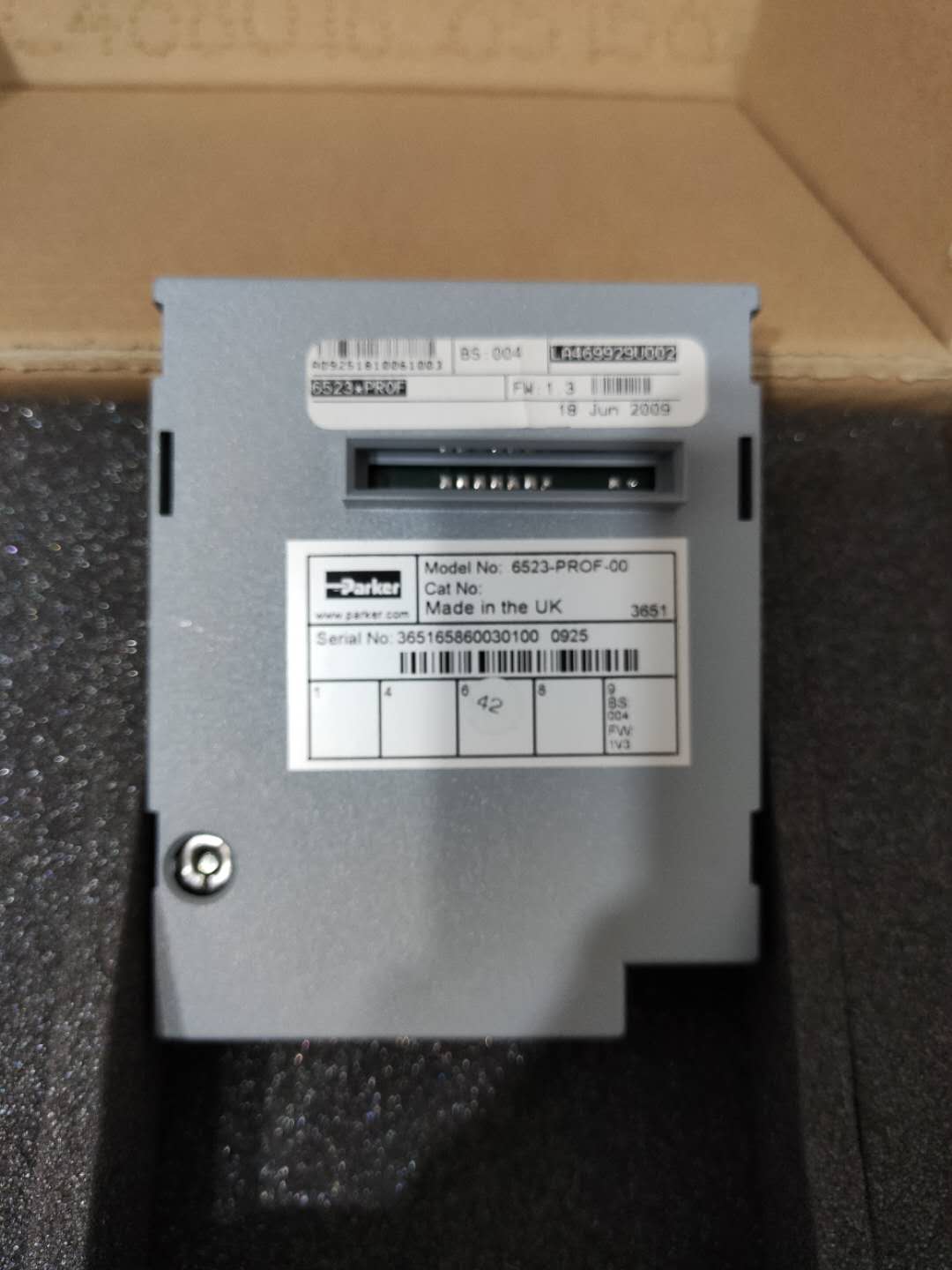

Manufacturer Part Number is 6523-PROF-00. Legacy Part Number is 6523/PROF/00. Sometimes specified as LA469929U002.
