690-433105F2-B0SP00-A000

690-231400B0-BF0P00-A400
690-231400B0-BF0P00-A400
690-231400B0-BF0P00-A400
690-231400B0-BF0P00-A400

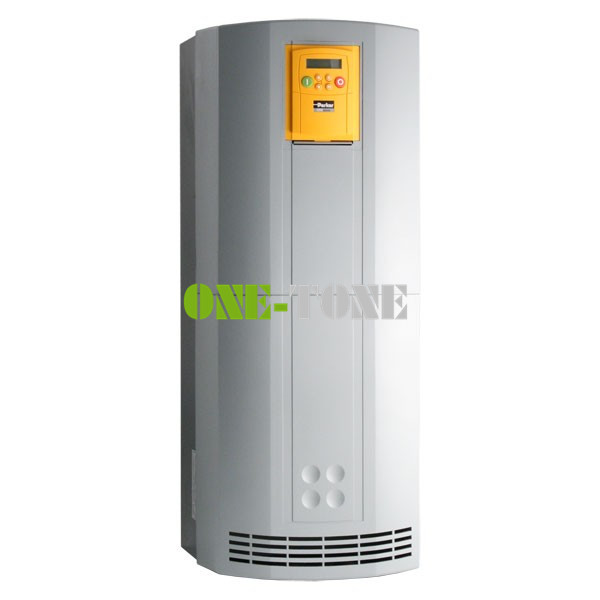

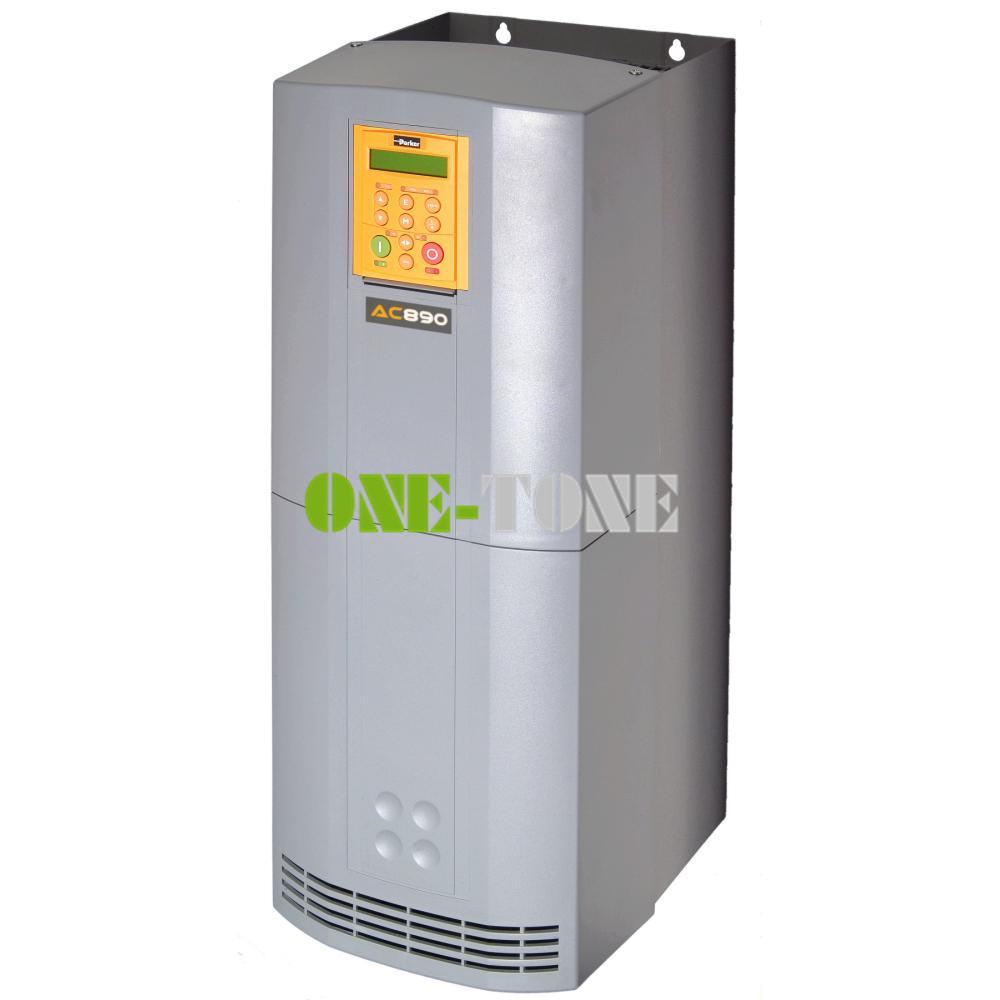

Product Name : 690-433105F2-B0SP00-A000
Old Code : 690PF/0550/400/0010/UK/0/0/0/SHTTL/B0/230/0
Power Rating : 55KW
Supply Voltage : 400-460V
Filter : Not Fitted
Keypad : Fitted
Directions



Part No: 690-433105F2-B0SP00-A000 (690PF/0550/400/0010/UK/0/0/0/SHTTL/B0/230/0)
Phase : Three Phase (415V)
Supply Voltage : 400-460V
Power Rating : 55.0KW
Current Rating : 105.0A
Filter : Not Fitted
Keypad : Not Fitted
Brake Switch : Fitted
System Board : Fitted
Auxiliary Supply : 230V Auxiliary Supply
Description:

55.0kW /  105A Constant Torque Rating (75kW / 145A Quad) - Frame 'F'

The AC690+ Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-500V 3-phase 0.75 to 1000kW and 220V-240V 0.75 to 55kW.

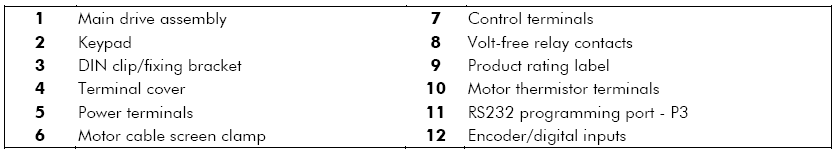

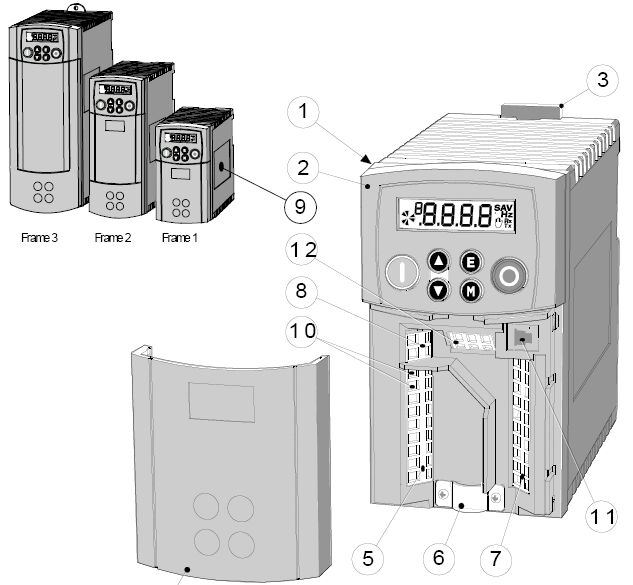

Component Identification

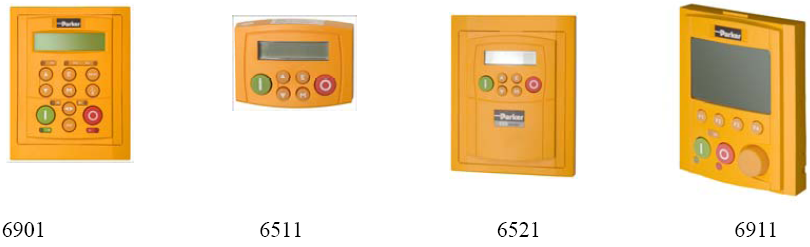

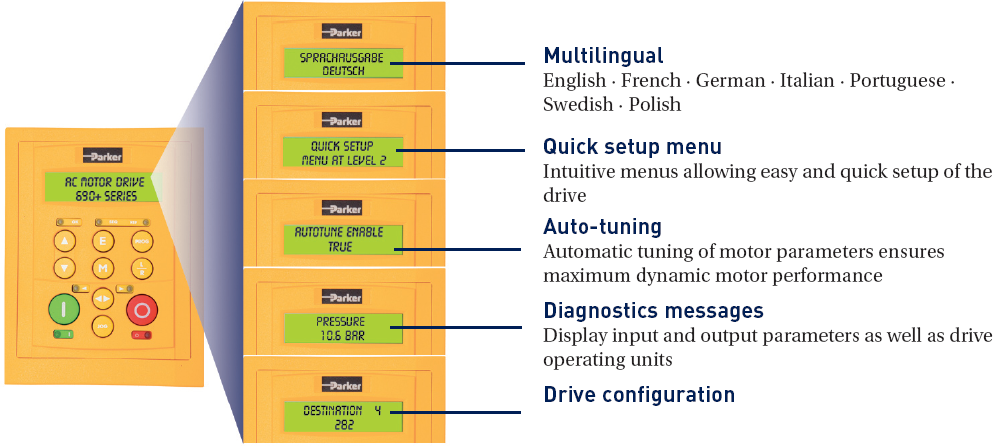

Operator Keypads

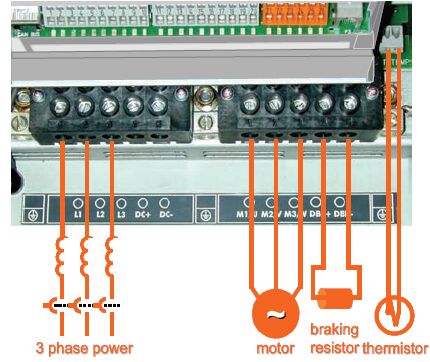

Power Connections

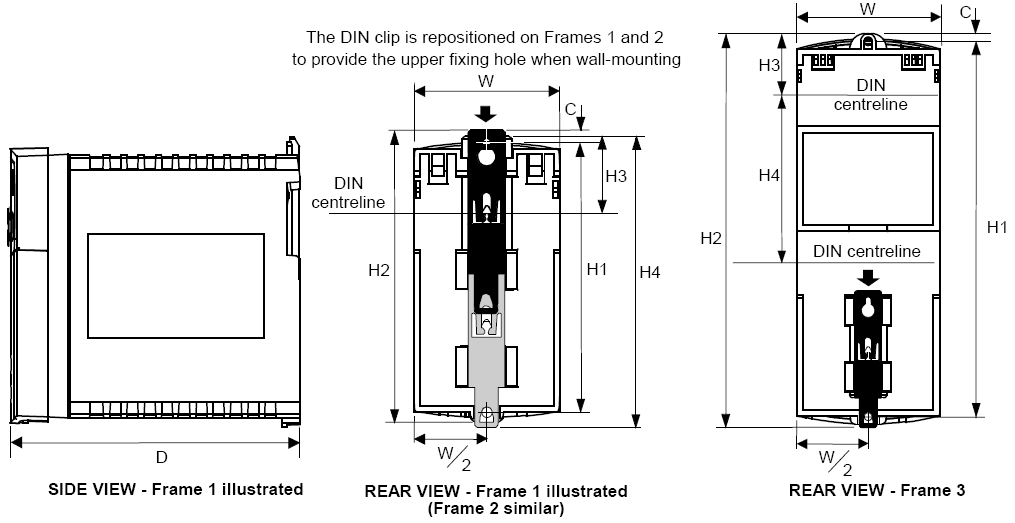

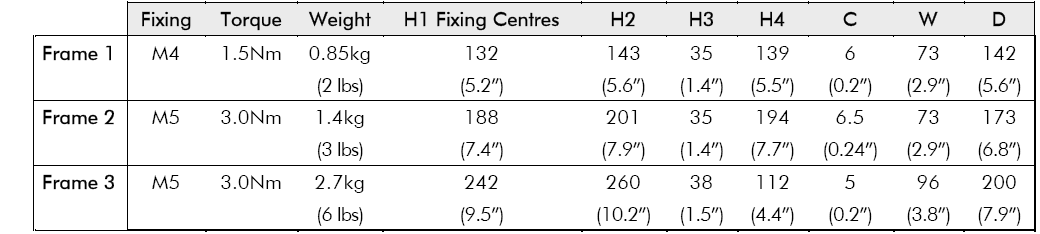

Mechanical Installation

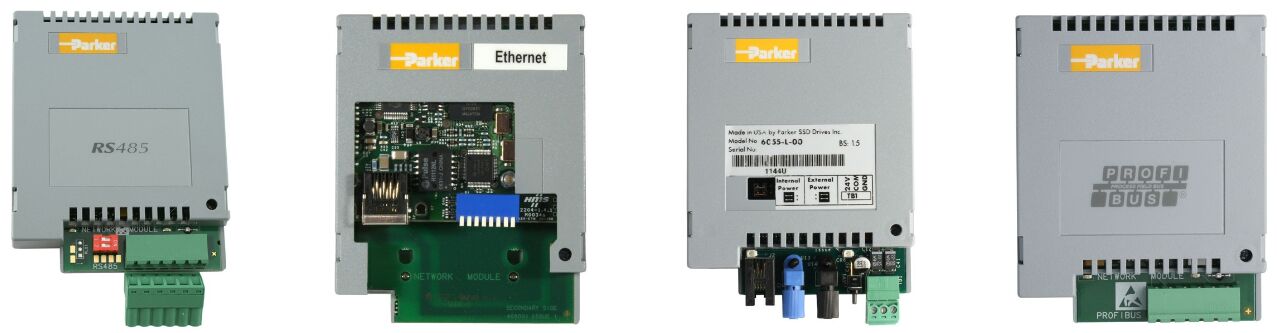

Spare parts and Accessories

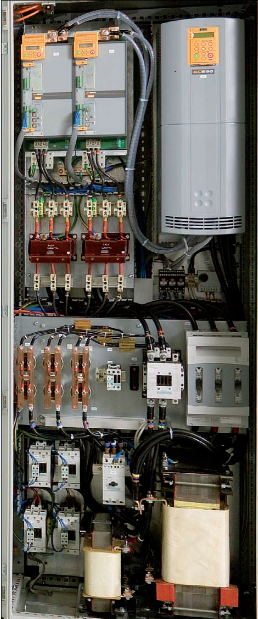

Application
