Product Name : AH385851U005-1 (AH385851U005)
Brand : Parker SSD
Item : Power Board
Application : 590C, 590L, 590A & 590S DC Drives
Directions

Part No: AH385851U005-1 (AH385851U005)

Description:

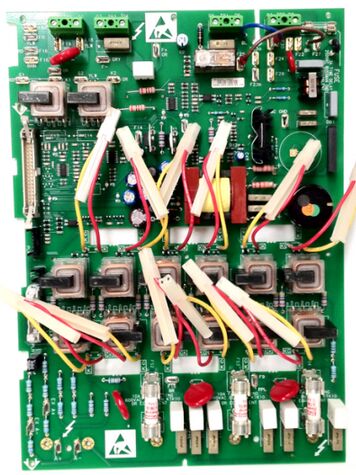

Parker SSD AH385851U005-1 (Usually shown on the board as AH385851U005) Spare 4-Quadrant Power Board for Low Voltage 110-220V line supplies used in 590C, 590L, 590A & 590S DC Drives in current sizes; 35A, 70A, 110A, 150A, 180A & 270A and It's also used in the LV 598 External stack drives.



Also used in the Low Voltage 110-220V 590P-DRV (590+ DRV) frame 3, 180A and 270A.



Manufacturer’s part number is AH385851U005-1. Could also be recognised as AH385851U005 or AH385851UOO5-1 or AH385851T005-1.



An easy way to tell the difference between 2-Quadrant and 4-Quadrant Power Boards are by the thyristors located in the bottom 3rd of the board:-



If there are two rows of thyristors then the board is 4-Quadrant. If there are only one row, then board is two quadrant (Non-Regenerative).



For the Low Voltage 2-Quadrant Power Boards, please use; AH385851U004
