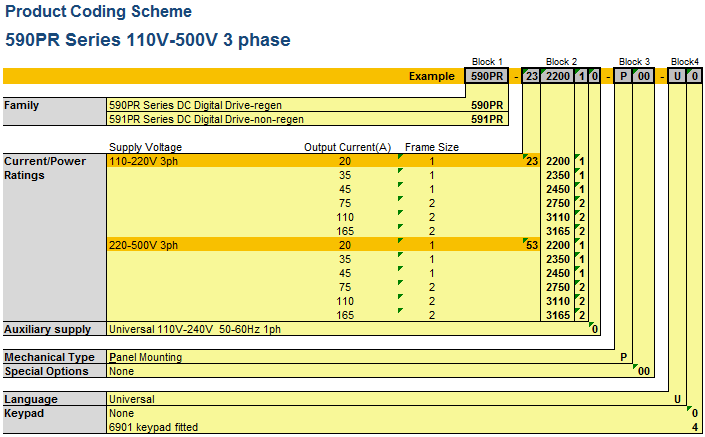

Product Range

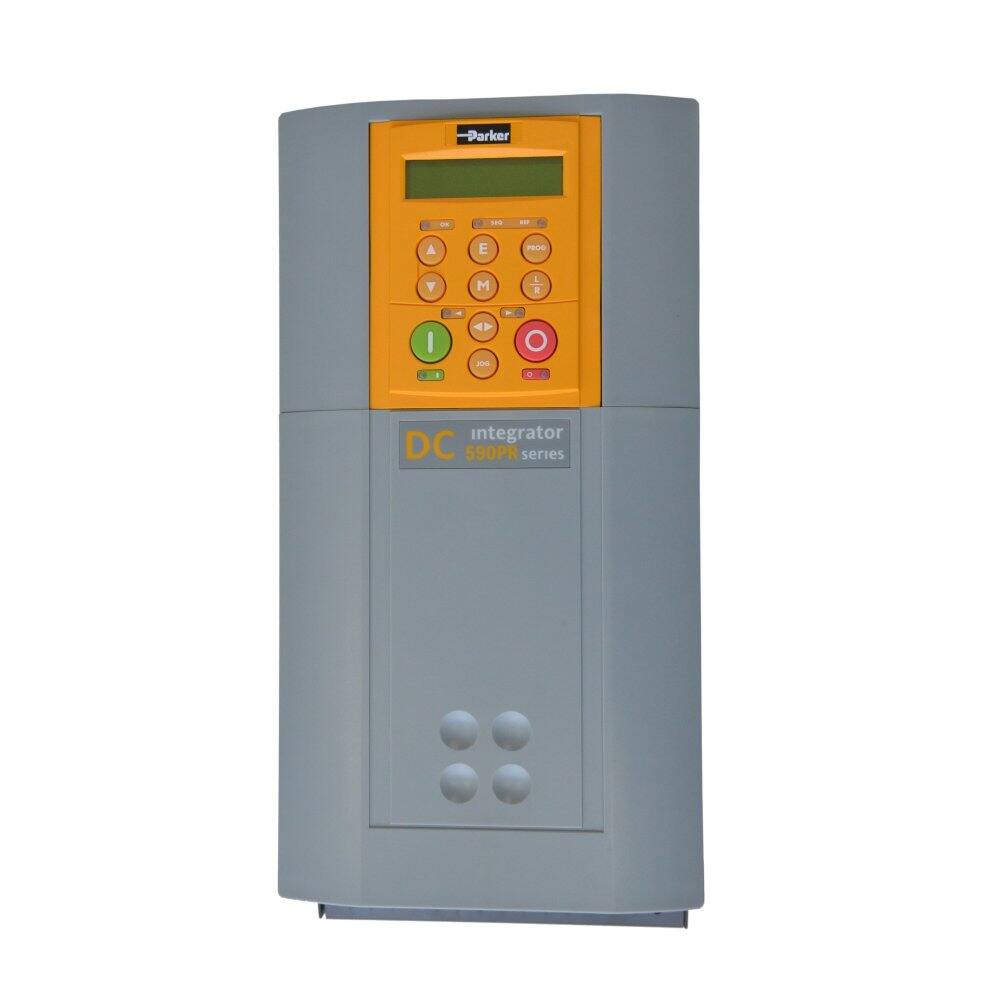

The DC590PR Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.
All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.
Where possible, standard parts are used throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system. For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety. The coding circuitry adjusts automatically to accept supply frequencies between 45-65Hz and possesses high immunity to supply-borne interference. The armature controllers are phase rotation insensitive.
Spares List (Frames 1-2) | ||||||
Common Spares | ||||||
Control Board | Ribbon Cable | |||||
Software Version | Status * | |||||
10.x | AH860023U001 | CURRENT | - | |||
* Do not attempt to upgrade by fitting a later software version Control Board. You may experience hardware compatibility problems. If in doubt, contact Parker. | ||||||
Frame 1-2 | ||||||
Product | Power Board | Terminal Board | Armature Thyristor | Field Bridge | Fan | Fan Assy |
591PR/0020/500/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0020/500/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0035/500/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0035/500/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0045/500/ | AH860021U512 | - | CF385524U016 | LA860077 | - | - |
590PR/0045/500/ | AH860021U514 | - | CF385524U016 | LA860077 | - | - |
591P/0075/500/ | AH860021U512 | - | CF385524U016 | LA860077 | DL860001 | LA860042 |
590P/0075/500/ | AH860021U514 | - | CF385524U016 | LA860077 | DL860001 | LA860042 |
591P/0110/500/ | AH860021U512 | - | CF385524U016 | LA860077 | DL860002 | LA860041 |
590P/0110/500/ | AH860021U514 | - | CF385524U016 | LA860077 | DL860002 | LA860041 |
591P/0165/500/ | AH860021U512 | - | CF385525U016 | LA860077 | DL860002 | LA860041 |
590P/0165/500/ | AH860021U514 | - | CF485525U016 | LA860077 | DL860002 | LA860041 |
591PR/0020/220/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0020/220/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0035/220/ | AH860021U512 | - | CF385522U016 | LA860077 | - | - |
590PR/0035/220/ | AH860021U514 | - | CF385522U016 | LA860077 | - | - |
591PR/0045/220/ | AH860021U512 | - | CF385524U016 | LA860077 | - | - |
590PR/0045/220/ | AH860021U514 | - | CF385524U016 | LA860077 | - | - |
