Product Details

nanodac - Chart Recorder

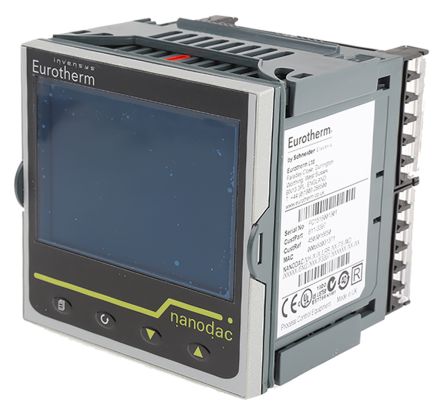

The nanodacTM recorder/controller offers the ultimate in graphical recording combined with PID control for a box of its size.

This secure data recording device with accurate control is enhanced by a full colour, VGA display to bring a crystal clear operator interface to even the smallest of machines.

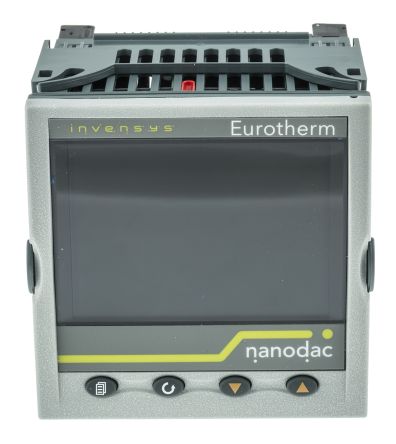

The 3.5” TFT display offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application.

The views include: Horizontal and vertical trends, Horizontal and vertical bar graphs, Numeric, Alarm panel, Alarm status, and control loops.

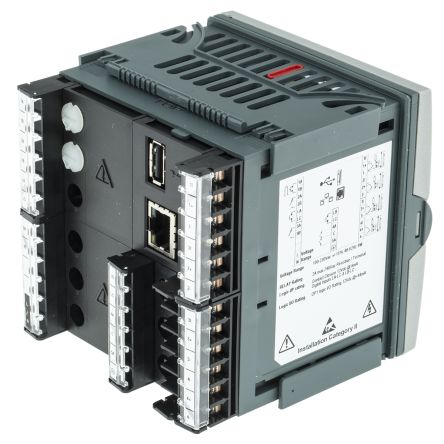

The unit also provides user wiring from the front of the product for detailed configuration without the need to connect to a PC.

Secure data recording

High accuracy universal inputs

2 PID control loops

USB removable data storage facility

50MB flash memory

Ethernet communications

Modbus TCP/IP slave

3.5” TFT VGA crystal clear display

30 virtual channels

Multiple I/O options

Cascade with auto-tune

Multi-language (English, French, German, Italian and Spanish)

Compact design

Wash down front

1/4DIN panel mount

Specifications

Attribute                          Value

Parameter Measured  Current, Millivolt, Resistance, Temperature, Voltage

Recorder Input Type  MA, MV, RTD, Thermocouple, V

Number of Inputs          4

Number of Outputs          3

IP Rating                          IP10, IP65, IP66

Power Source                  Mains

Maximum Operating Voltage 230V

Width                          96mm

Battery Type                  BR 2330 Lithium

Length                          96mm

Weight                          440g

Height                           96mm

Model Number p           NANODAC/VH

Minimum Operating Voltage 100V

Dimensions                   96 x 90 x 96mm
