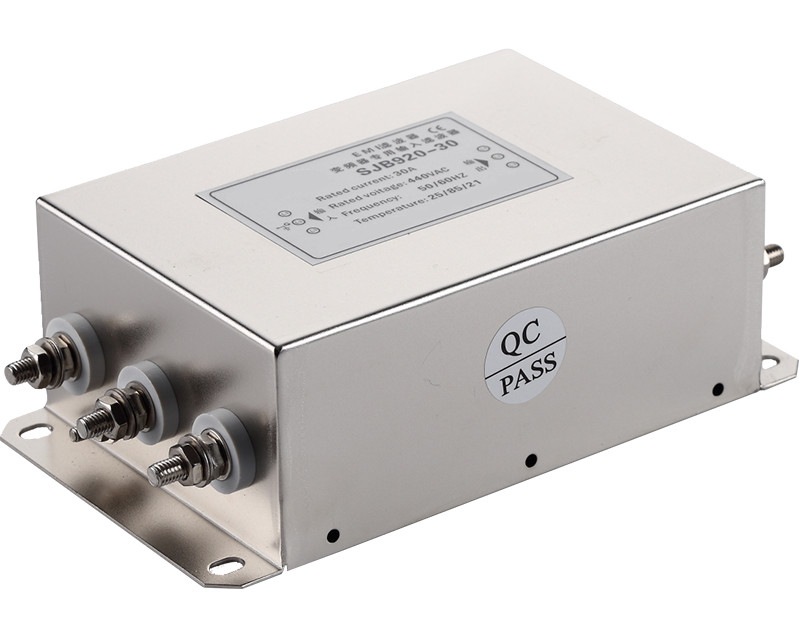

Inverter special output filter

Product introduction
Rated current 5A-1600A optional
The way of bolt and terminal table extraction is optional (300A or above is copper outlet).

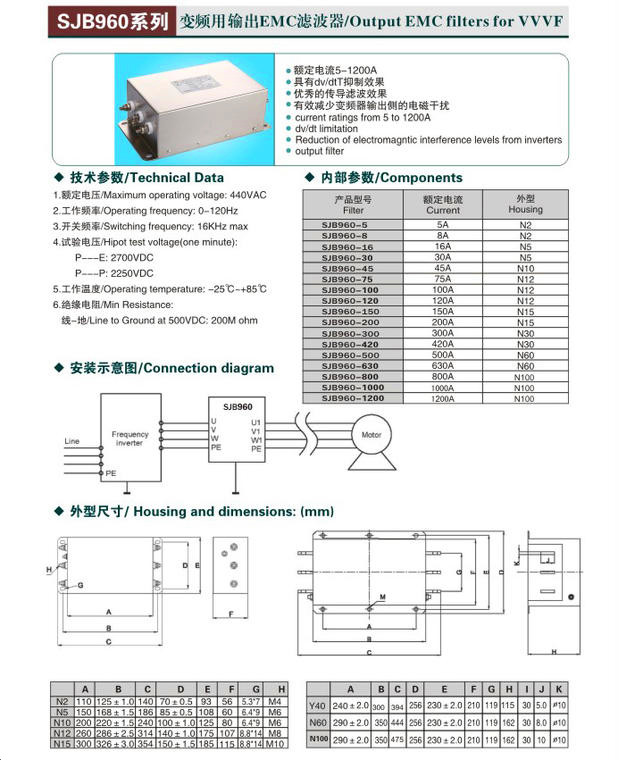

The SJB960 series is a conventional product that is suitable for most inverter brands.
Special customizing according to customer´s on-the-spot interference requirements

Characteristics and advantages
The SJB960 series is specially designed based on the frequency domain characteristics of the output terminal interfering with the load when the inverter works.
- effective solution to the abnormal state of heating, screaming, and so on easily occurred during the long distance transmission of frequency conversion devices.
- effectively solve common mode interference in frequency conversion load transmission lines, protect load, and extend load life.
For special customer groups, terminal terminal products can be selected to ensure safety under special circumstances.
- 300A above copper row type, and international design standards are more uniform, customer connection is convenient and safe.
- 660VAC/690VAC/1140VAC (inclusive) and above high voltage products optional.

application area

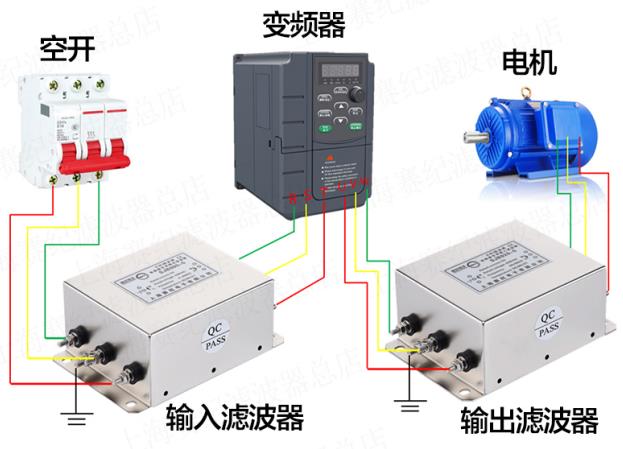

Industrial equipment such as frequency converter, servo motor, variable frequency power supply and so on, which need long-distance transmission.
