High-speed controllers for ultra-short positioning times; average speed frequency response 2100Hz
High-resolution encoders for maximum speed constancy (18 bits 262,144 P/rev)
Advanced vibration suppression for outstanding adaptation to machine requirements
Autotuning for extremely fast setup and installation
Optimum cost/benefit ratio
Absolute position encoder included as standard equipment
Minimum wiring overheads thanks to Plug & Play configuration and automatic motor identification
Supports global standards

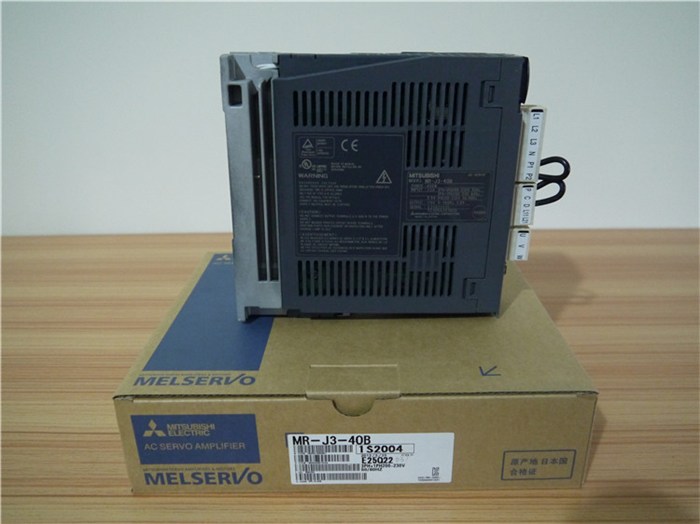

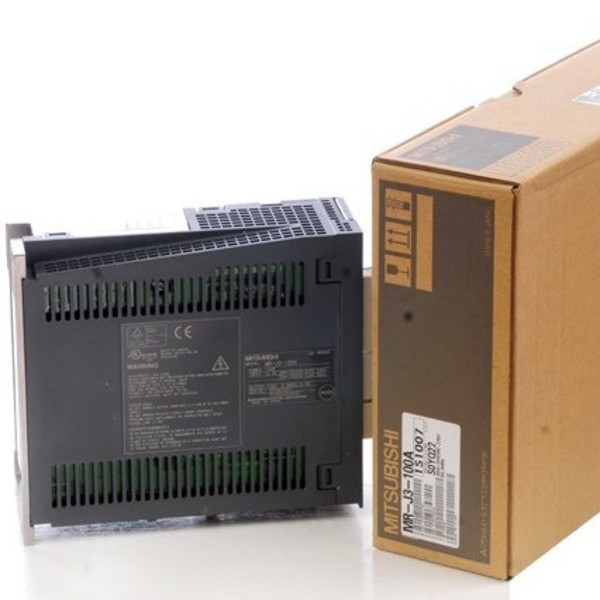

| Servo Amplifiers | 10A | 20A | 40A | 60A | 70A | 100A | 200A | 350A | 500A | 700A | |
| MR-J3-A/B/T | 10B | 20B | 40B | 60B | 70B | 100B | 200B | 350B | 500B | 700B | |
| (200 V Type) | 10T | 20T | 40T | 60T | 70T | 100T | 200T | 350T | 500T | 700T | |
| Power supply | Voltage/frequency* | 3-phase 200-230V AC, 50/60Hz | 3-phase 200-230V AC, 50/60Hz | ||||||||
| 1-phase 200-230V AC, 50/60Hz | |||||||||||
| Permissible voltage fluctuation | 3-phase 200-230V AC: 170-253V AC | 3-phase 170-253V AC | |||||||||
| 1-phase 230V AC: 207-253V AC | |||||||||||
| Permissible frequency fluctuation | Max. ±5% | ||||||||||
| Control system | Sinusoidal PWM control / current control system | ||||||||||
| Dynamic brake | Built-in | ||||||||||
| Protective functions | Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal relay), servo motor overheating protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection | ||||||||||
| Cooling / protection rating | Self-cooling, open (IP00) | Fan cooling, open (IP00) | |||||||||
| Environment | Ambient temperature | Operation: 0-55°C (non-condensing); | |||||||||
| Storage: -20-65 °C (non-condensing) | |||||||||||
| Relative humidity | Operation: 90% RH max. (non-condensing); | ||||||||||
| Storage: 90% RH max. (non-condensing) | |||||||||||
| Elevation | Max. 1000m above sea-level | ||||||||||
| Vibration | Max. 5.9m/s² (0.6G) | ||||||||||
| Weight [kg] | 0.8 | 0.8 | 1 | 1 | 1.4 | 1.4 | 2.3 | 2.3 | 4.6 | 6.2 | |
