FUNCTIONS          PARAMETERS

Brand Name              Mitsubishi

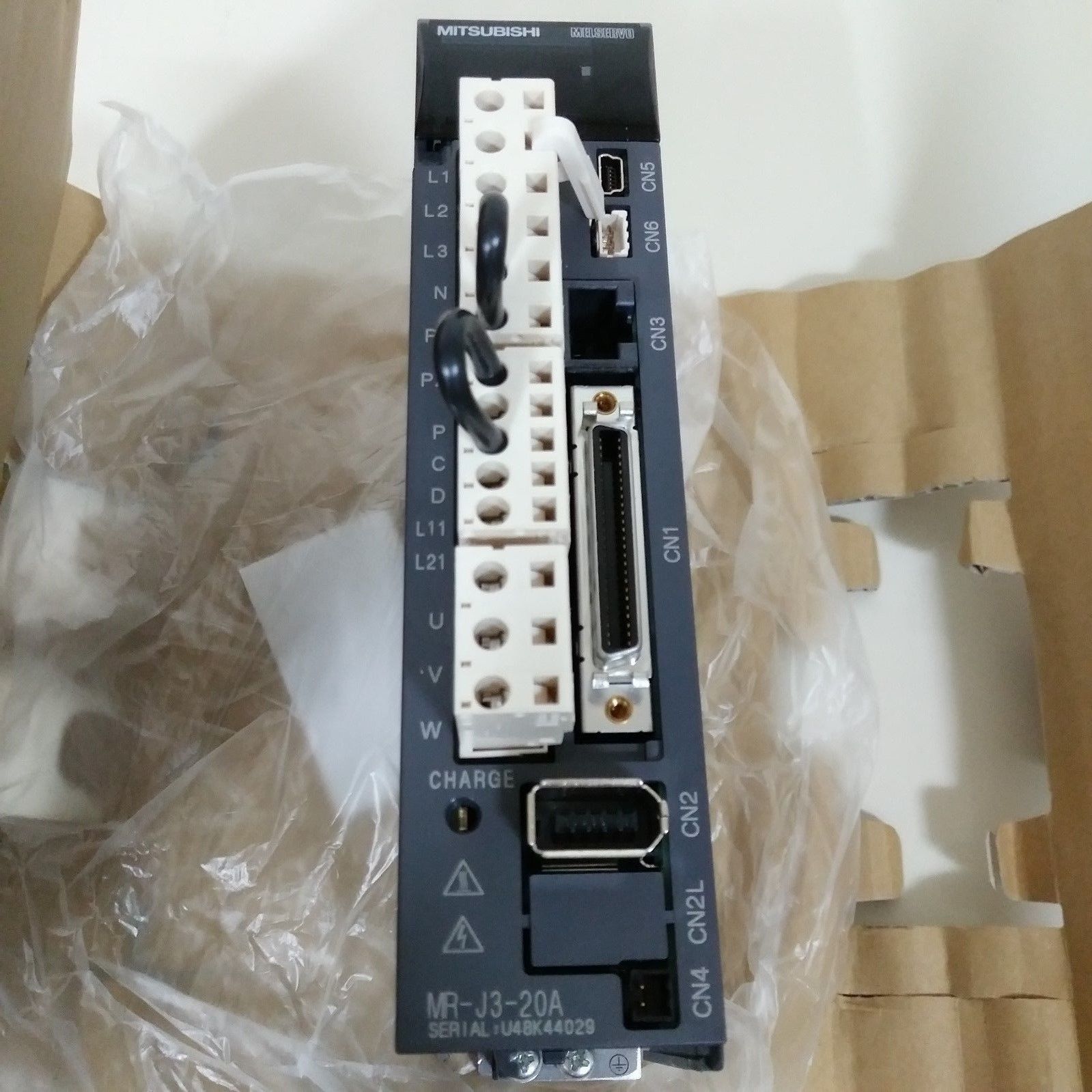

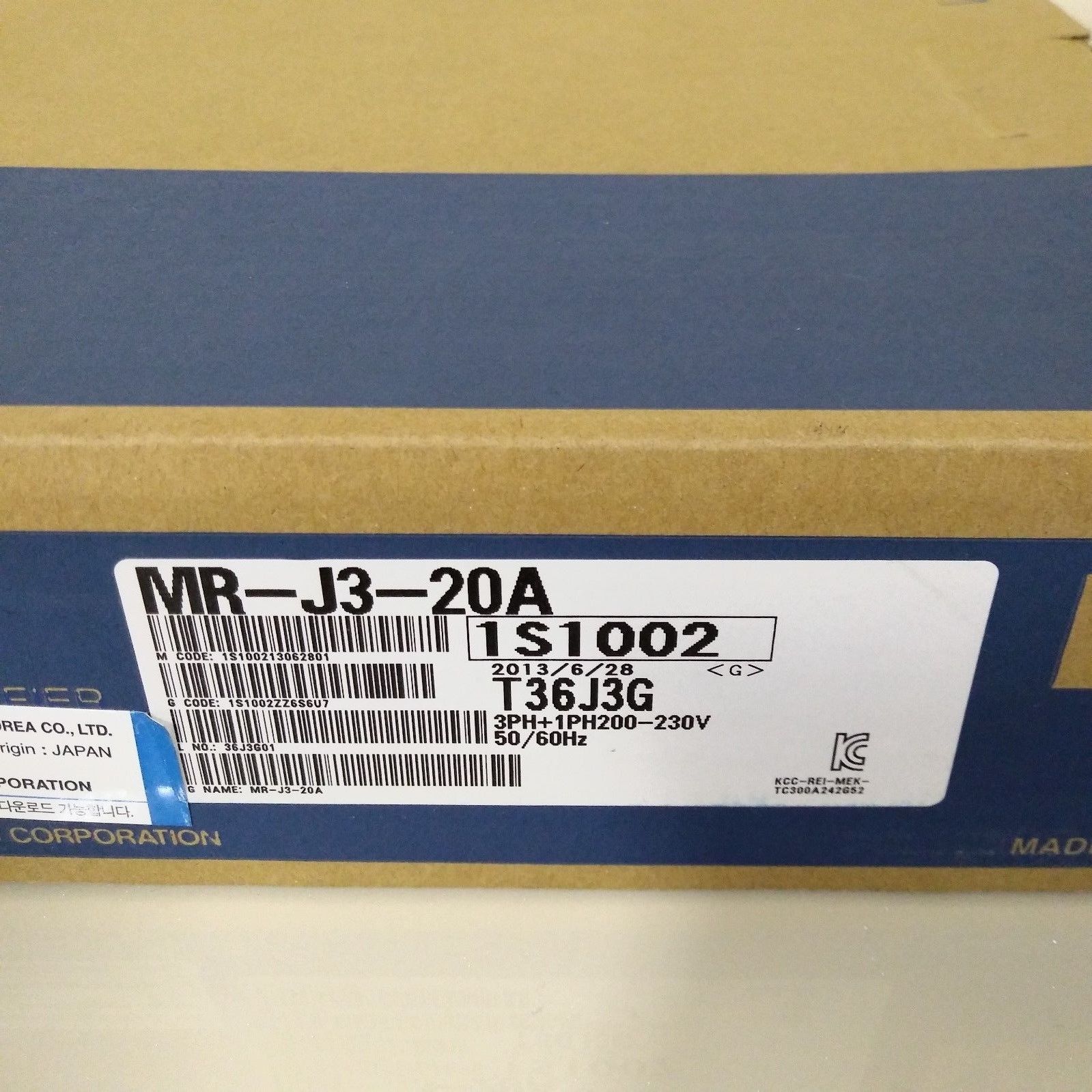

Model Number  MR-J3-20A

Voltage/frequency     1-phase 200-230V AC, 50/60Hz

Permissible voltage fluctuation1-phase 230V AC: 207-253V AC

Permissible frequency fluctuation Max. ±5%

Control systemSinusoidal PWM control / current control system

Dynamic brake Built-in

Cooling / protection ratingSelf-cooling, open (IP00)

Elevation Max. 1000m above sea-level

Feature

• Power: 0.2kW

• Input: 30W, 3-Phase 200-230VAC OR 1-Phase 200-230VAC

• Frequency : 50/60Hz

• Control System : Sinusoidal PWM control/current control system

• Ambient Temeperature : 0 ~ 55 C non freezing

• Output: 170 V, 0-360 Hz

• Dynamic Brake : Built-in

• Motor Type : AC

• Storage humidity : 90% RH or less non-condensing

• Ambient Humidity : 90% or less non-condensing

• Ambient Height : An altitude of 1 km below the sea level

• Storage temperature : -20 ~ 65 C non freezing

• Full set cable : MR-J3ENCBL5M-A1-L/MR-PWS1CBL5M-A1-L/MR-J3CN1

• Full servo motor : HF-KP23
