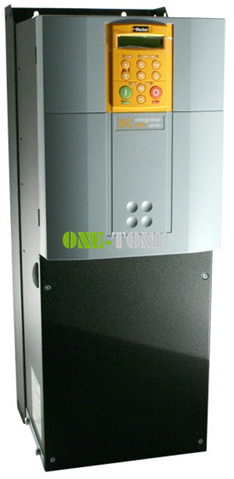

PARKER SSD 591P380A

PARKER SSD 591P380A
PARKER SSD 591P380A
PARKER SSD 591P380A
PARKER SSD 591P380A
PARKER SSD 591P380A
Product Name : PARKER SSD 591P380A
Model No. : 591P-53338041-P00-U4V0 (591P/0380/500/0011/UK/AN/0/115/0)
Supply Input : 220-500Vac 3PH
Current Extra : 2Q (Non-regen)
Current : 380A
Ingress Protection Code : IP20
Directions



Product Description:

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.

All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.


Specification:

Parker SSD 591P, 2Q DC Drive - 3PH, 220-500VAC - 380A Output - Analogue Tacho F/B - 230VAC, 1PH Auxiliary Voltage - (Formerly Eurotherm Drives) - Frame 3

Frame 1 - 15A, 35A

Frame 2 - 40A, 70A, 110A, 165A

Frame 3 - 180A, 270A

Frame 4 - 380A, 500A, 725A, 830A

Frame 5 - 1580A

Frame 6 - 1250A, 1600A, 1950A

Frame H - 1200A, 1700A, 2200A, 2700A

Output Current: Rating 15 - 2700A

Output Rating (HP): 1 - 2000HP

Input Voltage: 3 Phase, 220-500V (±10%)

Environmental & Operating Characteristics

Ingress Protection Code IP00. IP20 on frame size 1 (15-35A) drives only [Europe] UL Open Type [North America/Canada] Operating Control Modes Regenerative | Non-Regenerative | Stack Controller Feedback Options Armature Voltage | Tachometer | Encoder Communication Interface RS232 / RS485 | CANopen | ControlNet | DeviceNet Profibus | Ethernet TCP / IP | Link | Modbus Programming ConfigEd Lite, Now DSE-Lite Also use 6901 Keypad Operating Temperature (C) 0-45C (15-165A) 0-35C (180-270A) 0-40C (380-2700A) derate up to 55C max Operating Temperature (F) 32-113F (15-165A) 32-95F (180-270A) 32-104F (380-2700A) derate up to 131F max Operating Altitude A Up to 500m ASL (derate > 500m) Operating Humidity 85% relative humidity at 40°C non-condensing

Standards & Compliance

EMC Compatibility CE Marked in accordance with 2004/108/EC (EMC Directive) Europe Low Voltage Directive 2006/95/EC Overvoltage Category III (3-phase supply) Overvoltage Category II (auxiliary supply) Pollution Degree II Safety EN61800-5/2003 (when fitted inside a cubicle) North America/Canada Complies with UL508C and CSA22.2 #14 (open-type drive) (*only applicable to frame sizes 1-4)

590P/0015/500/0011

15A   reversible

591P/0015/500/0011

15A   irreversible

590P/0035/500/0011

35A   reversible

591P/0035/500/0011

35A   irreversible

590P/0040/500/0011

40A   reversible

591P/0040/500/0011

40A   irreversible

590P/0070/500/0011

70A   reversible

591P/0070/500/0011

70A   irreversible

590P/0110/500/0011

110A reversible

591P/0110/500/0011

110A irreversible

590P/0165/500/0011

165A  reversible

591P/0165/500/0011

165A irreversible

590P/0180/500/0011

180A reversible

591P/0180/500/0011

180A irreversible

590P/0270/500/0011

270A reversible

591P/0270/500/0011

270A irreversible

590P/0380/500/0011

380A  reversible

591P/0380/500/0011

380A irreversible

590P/0500/500/0011

500A  reversible

591P/0500/500/0011

500A irreversible

590P/0725/500/0011

725A  reversible

591P/0725/500/0011

725A  irreversible

590P/0830/500/0011

830A  reversible

591P/0830/500/0011

830A irreversible
