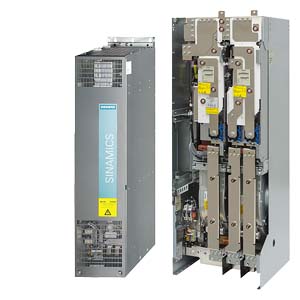

SIEMENS SINAMICS G130 chassis units have been designed for variable-speed drives in machine building and plant construction.
They have been particularly tuned to the necessities of drives with quadratic or constant load characteristics with medium performance requirements without regenerative feedback.
The control accuracy of the sensorless vector control is appropriate for most applications, and additional actual speed value encoders are therefore redundant.
SINAMICS G130 offer an economical drive solution which can be matched to the respective customer requirements by a wide range of components and options.
TECHNICAL SPECIFICATION
Supply voltages | 3AC 380 to 480 V 3AC 500 to 600 V 3AC 660 to 690 V |
Output ranges | 110 to 560 kW 110 to 560 kW 75 to 800 kW |
Supply systems: | TN/TT or IT |
Line frequency: | 47 to 63 Hz |
Output frequency: | 0 to 300 Hz |
Control method: | Vector control with encoder or V/f control |
Fixed frequencies: | 15 fixed frequencies plus 1 basic frequency, programmable |
Skipped frequency bands: | 4, programmable |
Customer terminal block: | Digital inputs/outputs Analog inputs/outputs Inputs for motor temperature evaluation Variable number |
Communications interface: | PROFIBUS DP as standard |
Braking mode: | Braking module as system component |
Degree of protection: | IP00 |
Type of cooling: | Internal fan (forced air cooling) |
Noise level: | ≤ 72 dB (A) with 50 Hz line frequency |
Conformity : | CE, cULus (available soon) |
Software functions: | Automatic restart following interruptions in operation as a result of a power failure - Smooth connection of converter to rotating motor - Kinetic bufferingAutomatic motor identification for control optimization - Programmable ramp-up/down times - Ramp smoothing |
Protection functions: | Thermal monitoring of motor and power sections Undervoltage, overvoltage, earth fault, short-circuit, stall prevention |
Safety functions: | STO, SS1 (Integrated safety functions with drives) |
Suitable motors: | Induction motors |
Part BRIEF OVERVIEW
MLFB | ITEM NAME AND DETAILS |
6SL3310-1GE32-1AA3 | SINAMICS G130 POWER MODULE IP20 3AC 380-480V, 50/60HZ, 210A UNIT RATING: 110KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE32-6AA3 | SINAMICS G130 POWER MODULE IP20 3AC 380-480V, 50/60HZ, 260A UNIT RATING: 132KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE33-1AA3 | SINAMICS G130 POWER MODULE IP20 3AC 380-480V, 50/60HZ, 310A UNIT RATING: 160KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE33-8AA3 | SINAMICS G130 POWER MODULE IP20 3AC 380-480V, 50/60HZ, 380A UNIT RATING: 200KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE35-0AA3 | SINAMICS G130 POWER MODULE IP20 3AC 380-480V, 50/60HZ, 490A UNIT RATING: 250KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE36-1AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 380-480 V, 50/60HZ, 605A UNIT RATING: 315 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE37-5AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 380-480 V, 50/60HZ, 745A UNIT RATING: 400 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE38-4AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 380-480 V, 50/60HZ, 840A UNIT RATING: 450 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GE41-0AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 380-480 V, 50/60HZ, 985A UNIT RATING: 560 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF31-8AA3 | SINAMICS G130 POWER MODULE IP20 3AC 500-600V, 50/60HZ, 175A UNIT RATING: 110 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF32-2AA3 | SINAMICS G130 POWER MODULE IP20 3AC 500-600V, 50/60HZ, 215A UNIT RATING: 132 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF32-6AA3 | SINAMICS G130 POWER MODULE IP20 3AC 500-600V, 50/60HZ, 260A UNIT RATING: 160 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF33-3AA3 | SINAMICS G130 POWER MODULE IP20 3AC 500-600V, 50/60HZ, 330A UNIT RATING: 200 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF34-1AA3 | SINAMICS G130 POWER MODULE IP00 3AC 500-600V, 50/60HZ, 410A UNIT RATING: 250 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF34-7AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 500-600 V, 50/60HZ, 465A UNIT RATING: 315 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF35-8AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 500-600 V, 50/60HZ, 575A UNIT RATING: 400 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF37-4AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 500-600 V, 50/60HZ, 735A UNIT RATING: 500 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GF38-1AA3 | SINAMICS G130 POWER MODULE IP00 3-PH. 500-600 V, 50/60HZ, 810A UNIT RATING: 560 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GH28-5AA3 | SINAMICS G130 POWER MODULE IP20 3AC 660-690V, 50/60HZ, 85 A UNIT RATING: 75 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
6SL3310-1GH31-0AA3 | SINAMICS G130 POWER MODULE IP20 3AC 660-690V, 50/60HZ, 100 A UNIT RATING: 90 KW 6-PULSE SUPPLY WITHOUT POWER RECOVERY DESIGN |
