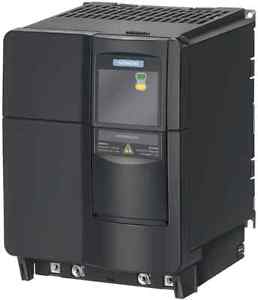

SIEMENS MICROMASTER (MM)420 frequency inverter, which can be adapted to every individual provisions without any great effort. MICROMASTER 420, the comprehensive inverter for 3-phase networks and voluntary field-bus connection from Siemens is designed for flexibility. Thanks to its modular design, the wide standard functions can be supplemented with a wide variety of options. No need for tools, as the operator panels and the communications modules can be simply plugged in. And Screw less control terminals - as with the rest of the family - make terminal connection anybody’s job
NOTICEABLE POINT
• MM420 VFD is Compact size
• MM 420 AC DRIVE Easy to commission
• Very flexible inputs and outputs
• MM420 FCC control (Flux Current Control) for high drive quality, even when load changes occur
• Dissimilar methods of commissioning, via operator panel or cost-free software tool
• Compound braking for controlled rapid braking
• 4 skip frequencies for minimizing stress on the machine when resonance occur
• Automatic restart
• Minimal stress on motor when inverter connected to rotating motor
• Modular system of inverter options
• Parameterizable acceleration/ deceleration times (0 to 650 s)
• Prepared for use in IT networks
• Integrated protection/overload functions
• Available with or without integrated EMC filter
TECHNICAL SPECIFICATION
Technical data | SIEMENS MICROMASTER 420 SPECIFICATION |
Mains voltage and power ranges | 200 V to 240 V 1 AC ±10 % |
200 V to 240 V 3 AC ±10 % | |
380 V to 480 V 3 AC ±10 % | |
Power frequency | 47 Hz to 63 Hz |
Output frequency | 0 Hz to 650 Hz (Due to legal restrictions a limitation to 550 Hz is under preparation) |
Power factor | ≥ 0.95 |
Inverter efficiency | 96 % to 97 % (Further information is available on the Internet at: |
Overload capability | Overload current 1.5 x rated output current (i.e. 150 % overload capability) for 60 s, cycle time 300 s |
Inrush current | Less than rated input current |
Control method | Linear V/f characteristic; quadratic V/f characteristic; multipoint characteristic (programmable V/f characteristic); flux current control (FCC) |
Pulse frequency | 16 kHz (standard with 230 V 1/3 AC) 4 kHz (standard with 400 V 3 AC) 2 kHz to 16 kHz (in 2 kHz steps) |
Fixed frequencies | 7, programmable |
Skip frequency ranges | 4, programmable |
Setpoint resolution | 0.01 Hz digital 0.01 Hz serial 10 bit analog |
Digital inputs | 3 fully programmable isolated digital inputs; switchable PNP/NPN |
Analog input | 1, for setpoint or PI controller (0 V to 10 V, scaleable or for use as 4th digital input) |
Relay outputs | 1, programmable, 30 V DC/5 A (resistive load); 250 V AC/2 A (inductive load) |
Analog output | 1, programmable, 30 V DC/5 A (resistive load); 250 V AC/2 A (inductive load) |
Serial interfaces | RS-485, optional RS-232 |
Motor cable lengths | |
without output choke | max. 50 m (shielded) max. 100 m (unshielded) |
with output choke | see variant dependent options |
Electromagnetic compatibility | Inverter available with internal EMC filter Class A; available as options are EMC filters to EN 55 011, Class A or Class B |
Braking | DC braking, compound braking |
Degree of protection | IP20 |
Operating temperature | –10 °C to +50 °C (+14 °F to +122 °F) |
Storage temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Relative humidity | 95 % (non-condensing) |
Installation altitude | Up to 1000 m above sea level without derating |
Installation altitude | Up to 1000 m above sea level without derating |
Standard SCCR (Short Circuit Current Rating) 1) | 10 kA |
PRODUCT DETAILS
MLFB | PRODUCT DETAILS |
6SE64202AB112AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.12 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.12 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB125AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.25 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.25 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB137AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.37 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.37 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB155AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.55 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.55 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB175AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.75 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.75 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB211BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 1.1 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 1.1 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB215BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 1.5 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 1.5 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB222BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 2.2 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 2.2 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB230CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 3 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AC230CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 3 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AC240CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 4 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 4 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AC255CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 5.5 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 5.5 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD222BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 2.2 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 2.2 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD230BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 3 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD240BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 4 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 4 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD255CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 5.5 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 5.5 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
