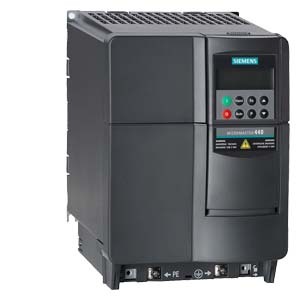

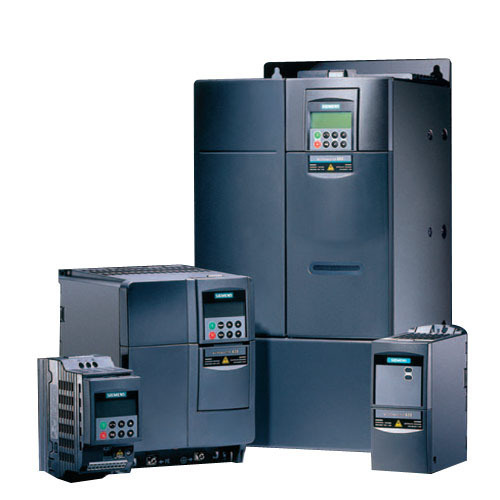

SIEMENS SIEMENS MICROMASTER MM430 inverter is suitable for a variety of variable-speed drive applications. Its flexibility provides for a wide spectrum of applications. It is especially suitable for use with industrial pumps and fans.
The inverter is especially character ized by its customer-oriented performance and ease-of-use. It has more inputs and outputs than SIEMENS MICROMASTER MM 420, an optimized operator panel with manual/automatic switchover, and adapted software functionality.
SIEMENS MICROMASTER MM 430 inverter has a modular design. The operator panels and communication modules can be easily exchanged.
Main characteristics
a. Easy, guided start-up
b. Modular construction allows maximum configuration flexibility
c. Six programmable isolated digital inputs
d. Two scaleable analog inputs (0 V to 10 V, 0 mA to 20 mA) can also be used as a 7th/8th digital input
e. Two programmable analog outputs (0 mA to 20 mA)
f. Three programmable relay outputs
30 V DC/5 A, resistive load
250 V AC/2 A, inductive load
g. Low-noise motor operation thanks to high pulse frequencies, adjustable (observe derating if necessary)
h. Protection for motor and inverter
i. Control of up to three additional drives on the basis of PID control (motor staging)
j. Operation of drive directly on mains (with external bypass circuit)
k. Low-energy mode
l. Detects dry run of pumps (belt failure detection)
Options (overview)
1. Line commutating chokes
2. Output chokes
3. LC filter and sinusoidal filter
4. Gland plates
5. Basic Operator Panel 2 (BOP-2) for parameterizing the inverter
6. Communication modules
a. PROFIBUS
b. DeviceNet
c. CANopen
7. PC connection kits
8. Mounting kits for installing the operator panels in the control cabinet doors
9. PC start-up tools, executable under Windows 98/NT/2000/ME/XP Professional
10. TIA integration with Drive ES
Performance features
• Quadratic V/f characteristic
• Multipoint characteristic (programmable V/f characteristic)
• Flying restart
• Latest IGBT technology
• Digital microprocessor control
• Flux Current Control (FCC) for improved dynamic response and optimized motor control
• Linear V/f characteristic
• Programmable acceleration/deceleration times, 0 s to 650 s
• Ramp smoothing
• Fast Current Limit (FCL) for trip-free operation
• Fast, repeatable digital input response time
• Fine adjustment using two high-resolution 10-bit analog inputs
• Compound braking for rapid controlled braking
• Four skip frequencies
• Removable “Y” capacitor for use on IT systems (with non-grounded mains supplies, the “Y” capacitor must be removed, and an output choke installed)
• Slip compensation
• Automatic restart facility following power failure or fault
• Energy saving mode (stopping e.g. of a pump at low speeds)
• Motor staging (connection and disconnection of additional motors, use of inverter as control drive in a pump cascade)
• Manual/automatic mode
• Load torque monitoring (belt failure detection; detects dry run of pumps)
• High-grade internal PID controller for simple process control
PRODUCTS DETAILS
MLFB | PRODUCT DETAILS |
6SE64202AB112AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.12 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.12 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB125AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.25 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.25 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB137AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.37 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.37 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB155AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.55 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.55 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB175AA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 0.75 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 0.75 KW 173 X 73 X 149 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB211BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 1.1 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 1.1 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB215BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 1.5 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 1.5 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB222BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 2.2 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 2.2 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AB230CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 1AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 3 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AC230CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 3 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AC240CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 4 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 4 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AC255CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 200-240V +10/-10% 47-63HZ CONSTANT TORQUE POWER 5.5 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 5.5 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD222BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 2.2 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 2.2 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD230BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 3 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 3 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD240BA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 4 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 4 KW 202 X 149 X 172 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
6SE64202AD255CA1 | SIEMENS MICROMASTER (MM)420 WITH BUILT IN CLASS A FILTER 3AC 380-480V +10/-10% 47-63HZ CONSTANT TORQUE POWER 5.5 KW OVERLOAD 150% FOR 60S VARIABLE TORQUE POWER 5.5 KW 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP -10 TO +50 DEG C W/O AOP/BOP |
MLFB NUMBER | DETAIL SPECIFICATION |
6SE64302AD275CA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 7.5 KW OVERLOAD 110% 60 S, 140% 3 S 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD311CA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 11 KW OVERLOAD 110% 60 S, 140% 3 S 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD315CA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 15 KW OVERLOAD 110% 60 S, 140% 3 S 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD318DA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 18.5 KW OVERLOAD 110% 60 S, 140% 3 S 520 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD322DA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 22 KW OVERLOAD 110% 60 S, 140% 3 S 520 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD330DA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 30 KW OVERLOAD 110% 60 S, 140% 3 S 520 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD337EA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 37 KW OVERLOAD 110% 60 S, 140% 3 S 650 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD345EA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 45 KW OVERLOAD 110% 60 S, 140% 3 S 650 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD355FA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 55 KW OVERLOAD 110% 60 S, 140% 3 S 1150 X 350 X 320 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD375FA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 75 KW OVERLOAD 110% 60 S, 140% 3 S 1150 X 350 X 320 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302AD388FA0 | SIEMENS MICROMASTER MM430 WITH BUILT-IN CLASS A FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 90 KW OVERLOAD 110% 60 S, 140% 3 S 1150 X 350 X 320 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD275CA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 7.5 KW OVERLOAD 110% 60 S, 140% 3 S 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD311CA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 11 KW OVERLOAD 110% 60 S, 140% 3 S 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD315CA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 15 KW OVERLOAD 110% 60 S, 140% 3 S 245 X 185 X 195 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD318DA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 18.5 KW OVERLOAD 110% 60 S, 140% 3 S 520 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD322DA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 22 KW OVERLOAD 110% 60 S, 140% 3 S 520 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD330DA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 30 KW OVERLOAD 110% 60 S, 140% 3 S 520 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD337EA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 37 KW OVERLOAD 110% 60 S, 140% 3 S 650 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD345EA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 45 KW OVERLOAD 110% 60 S, 140% 3 S 650 X 275 X 245 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD355FA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 55 KW OVERLOAD 110% 60 S, 140% 3 S 850 X 350 X 320 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD375FA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 75 KW OVERLOAD 110% 60 S, 140% 3 S 850 X 350 X 320 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
6SE64302UD388FA0 | SIEMENS MICROMASTER MM430 WITHOUT FILTER 3AC 380-480 V +10/-10% 47-63 HZ SQUARED TORQUE POWER 90 KW OVERLOAD 110% 60 S, 140% 3 S 850 X 350 X 320 (H X W X D) PROTECTION IP20 AMBIENT TEMP. -10 TO +40 DEG. C WITHOUT AOP/BOP |
