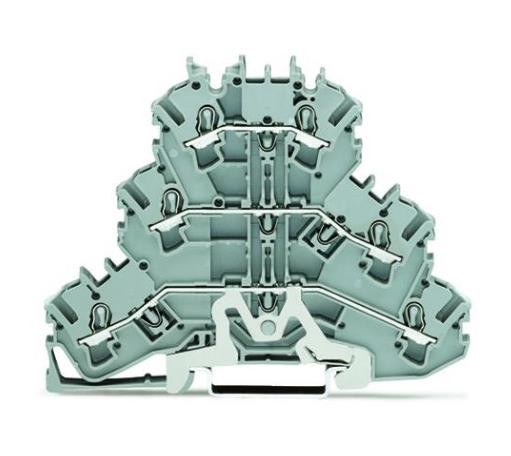

Features
Approvals
American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
Underwriters Laboratories Inc., UL, E45172, UL 1059
DEKRA Certification B.V., CCA, 1536069, C22.2 No. 158
DEKRA Certification B.V., CCA, NTR NL 7730, EN 60947
Bureau Veritas S.A., BV, 38586/A0 BV, EN 60947
DEKRA Certification B.V., CCA, 71-107687, EN 60947
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
Specifications
Ratings Per Iec/En
Ratings per: IEC/EN 60947-7-1
Nominal voltage (III/3): 500 V
Rated surge voltage (III/3): 6 kV
Rated current: 24 A
Rated current 2: 28 A
Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings Per Ul
Approvals per: UL 1059
Rated voltage UL (Use Group B): 300 V
Rated current UL (Use Group B): 20 A
Rated voltage UL (Use Group C): 300 V
Rated current UL (Use Group C): 20 A
Rated voltage UL (Use Group D): 600 V
Rated current UL (Use Group D): 5 A
Ratings Per Csa
Approvals per: C22.2 No 158
Rated voltage CSA (Use Group B): 600 V
Rated current CSA (Use Group B): 20 A
Rated voltage CSA (Use Group C): 600 V
Rated current CSA (Use Group C): 20 A
Connection 1
Connection technology: Push-in CAGE CLAMP®
Number of connection points: 3
Actuation type: Push-in || Operating tool
Connectable conductor materials: Copper
Nominal cross-section: 2.5 mm²
Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length: 10 … 12 mm / 0.39 … 0.47 inch
Wiring direction: Front-entry wiring
Connection 2
Number of connection points 2: 3
Physical Data
Width: 5.2 mm / 0.205 inch
Height: 93.3 mm / 3.673 inch
Depth from upper edge of DIN-rail: 81.3 mm / 3.201 inch
Mechanical Data
Potentialkennzeichnung: Shielding/L/L
Design: Horizontal type
Mounting type: DIN-35 rail
Marking level: Center/side marking
Material Data
Color: Gray
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.326 MJ
Weight: 20.356 g
