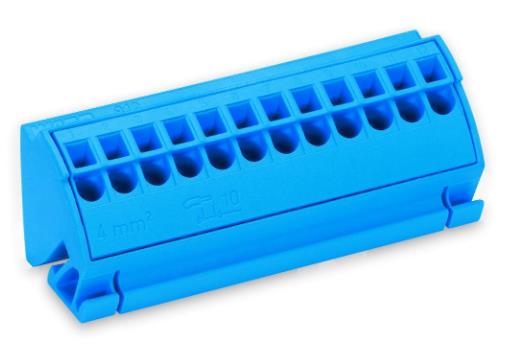

Product details
Details
Electrical data
Rated voltage (III / 3) 1000 V
Rated surge voltage (III/3) 6 kV
Rated current 96 A
Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3
Connection data
Connection technology Push-in CAGE CLAMP®
Actuation type Operating tool
Connectable conductor materials Copper
Solid conductor 0.5 … 4 mm² / 20 … 12 AWG
Solid conductor; push-in termination 0.5 … 4 mm² / 20 … 12 AWG
Stranded conductor 0.5 … 4 mm² / 20 … 12 AWGFine-stranded conductor 0.5 … 4 mm² / 20 … 12 AWGStrip length 11 mm / 0.43 inchPole No. 12Total number of connection points 12Total number of potentials 12Number of levels 1Wiring type Front-entry wiring
Physical data
Width 75 mm / 2.953 inch
Height 30 mm / 1.181 inch
Depth 27.5 mm / 1.083 inch
Material data
Color blue
Insulation material Polyamide (PA66)
Fire load 0.822 MJ
Weight 35.7 g
Commercial data
Product Group 12 (Matrix Patch Board)
Packaging type BOX
Country of origin PL
GTIN 4044918253291
Customs tariff number 8536904000
