industrial cee socket for reefer container HTN1241-3

industrial cee socket for reefer container HTN1241-3
Product Name : industrial cee socket for reefer container HTN1241-3
Directions

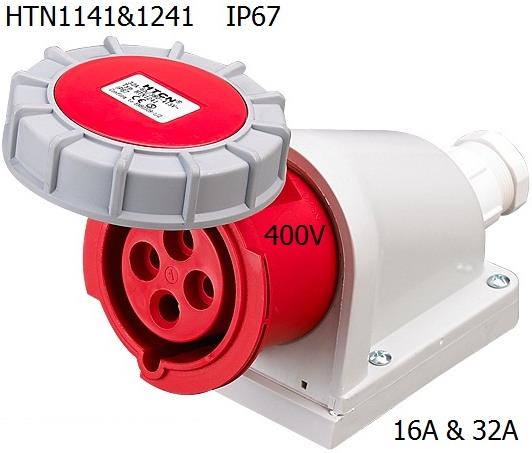

Reefer Container Wall Socket(Container-wall-socket)(Surface Mounted Sockets for Reefer Containers) 32A 3P+E IP67 3H HTN1241-3

Type(Model): HTN1241-3

Trade Mark: HTCN®

Rated current: 32A

Rated voltage: AC 440V

No. of poles: 3P+E (4P)(FOUR POLES)(4 POLE)(3P+T)(FOUR PINS)(4 PIN)(3P+PE)

Earth contact position: 3H

Color: RED

Protection degree: IP67 (waterproof)(watertight)

Housing material: Flame Retardant PA6 RoHS Reach

Contact: nickel-plated brass RoHS Reach

With Cable Glands

Operation Temperature: -25℃~+40℃

Certificates: S,CB,CE,TUV,ISO9001:2008,RoHS,REACH

Standards: IEC/EN60309-4, IEC/EN60309-1,IEC/EN60309-2

Package: Polybag + 10pcs/Inner Box + 40pcs/Export carton

>Disassemble and assemble conveniently, safe and quickly;

>Separable and sealed type design structure for the enclosure of sockets;

>The protection degree are up to IP67;

>Only need to dismantle the cover top of the enclosure when installation.
