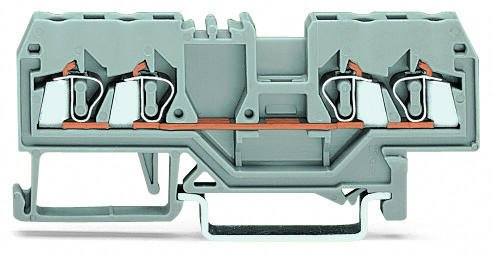

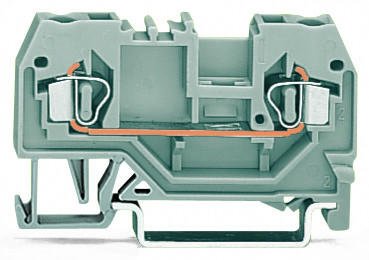

| Electrical data | |
| IEC Approvals | |
| Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 800 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated current | 24 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Connection data | |
| Connection technology | CAGE CLAMP® |
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Anschließbare Leiterwerkstoffe Hinweis | Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination. “Alu-Plus” Contact Paste Advantages: <ul><li>Automatically destroys the oxide film during clamping.</li><li>Prevents fresh oxidation at the clamping point.</li><li>Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).</li><li>Provides long-term protection against corrosion.</li></ul> Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste. For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Number of levels | 1 |
| Wiring type | Front-entry wiring |
| More | |
| Physical data | |
| Width | 5 mm / 0.197 inch |
| Height | 53 mm / 2.087 inch |
| Depth from upper edge of DIN-rail | 28 mm / 1.102 inch |
| Mechanical data | |
| Design | horizontal type |
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
| Material data | |
| Color | gray |
| Insulation material | Polyamide (PA66) |
| Fire load | 0.106 MJ |
| Weight | 5.4 g |
