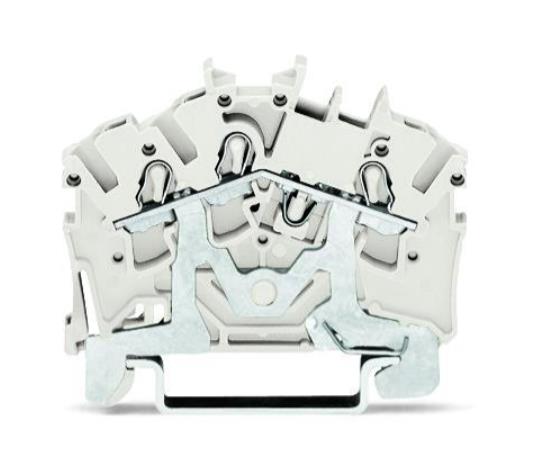

WAGO Item no. 2002-6308 3-conductor shield terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; white

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO Item no. 2002-6308 3-conductor shield terminal block; 2.5 mm²; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2,50 mm²; white

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-2

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 600V

Rated current UL (Use Group B) 20A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20A

Connection data

Total number of connection points 3

Total number of potentials 1

Number of levels 1

Number of jumper slots 2

Connection 1

Connection technology Push-in CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 2.5 mm²

Solid conductor 0.25 … 4 mm² / 22 … 12 AWG

Solid conductor; push-in termination 0.75 … 4 mm² / 18 … 12 AWG

Fine-stranded conductor 0.25 … 4 mm² / 22 … 12 AWG

Fine-stranded conductor; with insulated ferrule 0.25 … 2.5 mm² / 22 … 14 AWG

Fine-stranded conductor; with ferrule; push-in termination 1 … 2.5 mm² / 18 … 14 AWG

Note (conductor cross-section) Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length 10 … 12 mm / 0.39 … 0.47 inches

Wiring direction Front-entry wiring, angled
