590C/0350/6/1/0/0/0/00 591C/0350/6/1/0/0/0/00

Product Name : 590C/0350/6/1/0/0/0/00 591C/0350/6/1/0/0/0/00

Manufacturers Series : Parker SSD 590C/591C

Current Extra : 4Q (Regen) 2Q (Non-regen)

Current : 35A

Supply Input : 220-500Vac 3PH

Output : 460Va

Directions

Part No: 590C/0350/6/1/0/0/0/00 591C/0350/6/1/0/0/0/00/000

Description:

The 590 Series Converter is designed for use in a suitable enclosure, with associated control equipment. The unit accepts standard three-phase ac supply voltages in the range 110V to 660V, depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.

Mains Supply: 3-phase, 50/60Hz, earth referenced (TN) and non-earth referenced (IT).

Operating Supply Tolerance: ±10%

Voltage Ranges: 220 to 500V AC

Supply Current: (0.9 x Idc) Amps ac rms

Field Supply: 500V maximum Phase 3-phase rotation insensitive

Motor Power @ 460V DC: 15kW (35A)

Parker SSD Line Choke Part Number: CO463036 (35A)

Parker SSD External Fuses Part Number: CH110353 (35A)

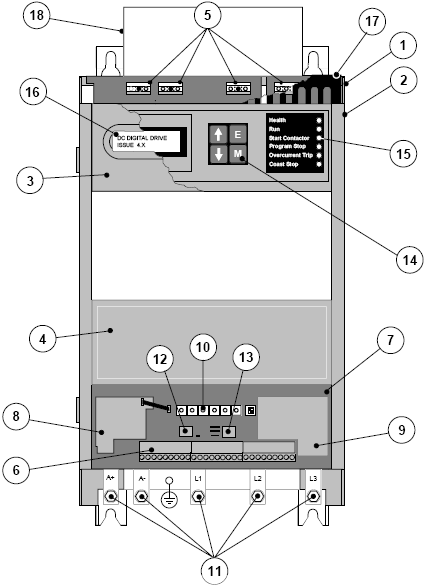

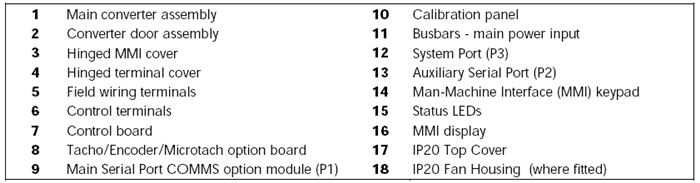

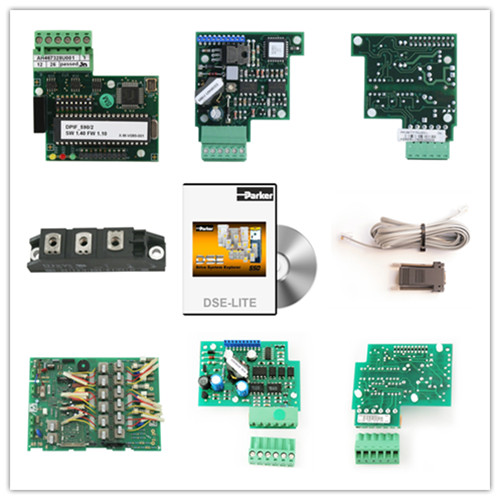

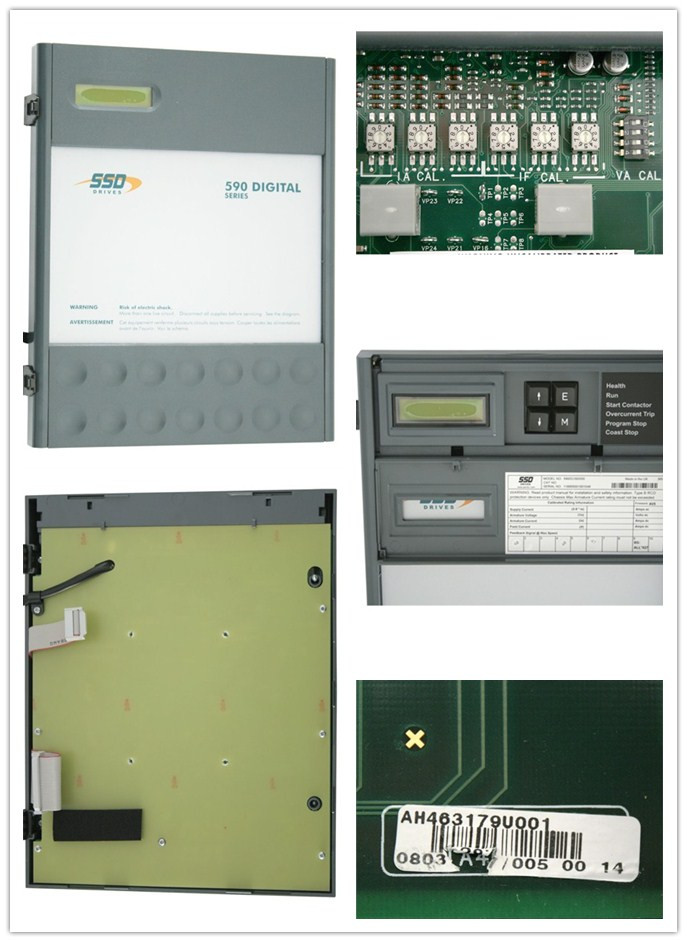

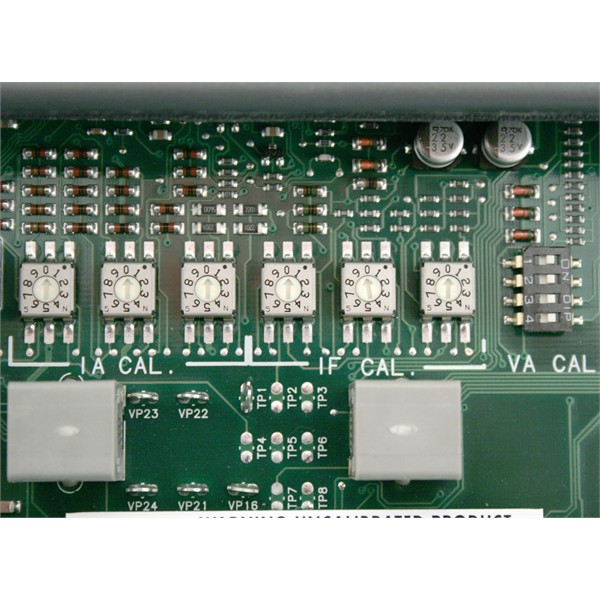

View of Component Parts:
