Details

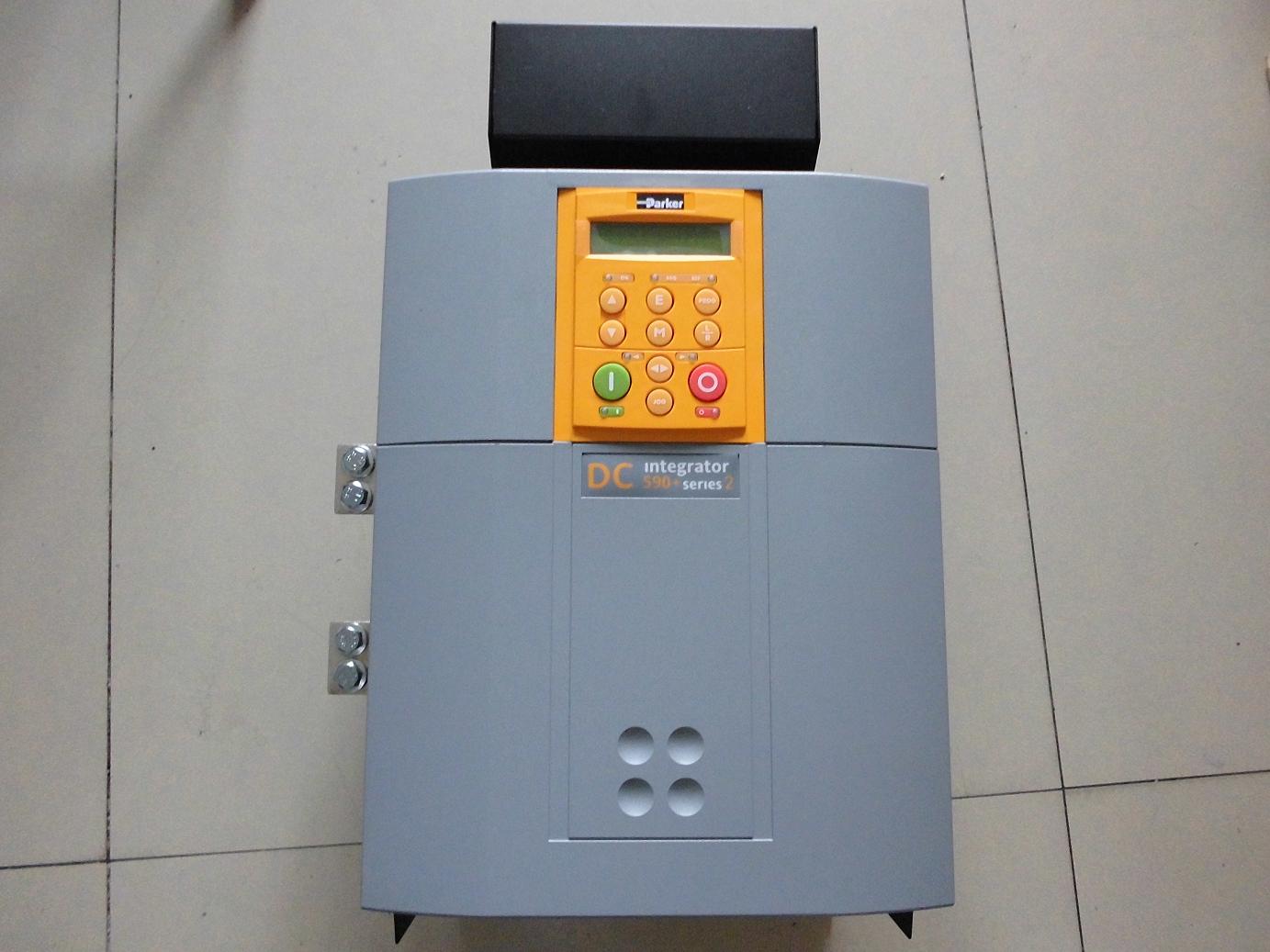

590P-53318032-P41-U4A0 | 590 Series Regen Digital Drive - 3PH, 220-500v - 180A, Frame 3 - 230v - Panel Mounting - No Special Options - English (50/60Hz) - 6901 Keypad Fitted - Analog Tacho - None
The Range: The 590P range is a 4 Quadrant Parker SSD Drive. The 591P range is a 2 Quadrant Parker SSD Drive.
Frame Sizes: Below are the power ratings for the different options and frame sizes. TOF = Top of Frame. 590P/591P 3PH, 4Q, 110-220V Supply, Universal Aux
Frame 1 (15, 35) A [TOF: 590P-23235010-P00-U4V0 / 591P-23235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-23316520-P00-U4V0 / 591P-23316520-P00-U4V0] 3PH, 4Q, 110-220V Supply, 115V Aux
Frame 3 (180, 270) A [TOF: 590P-23327031-P00-U4V0 / 591P-23327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383041-P00-U4V0 / 591P-23383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415851-P00-U4V0 / 591P-23415851-P00-U4V0] 3PH, 4Q, 110-220V Supply, 230V Aux
Frame 3 (180, 270) A [TOF: 590P-23327032-P00-U4V0 / 591P-23327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383042-P00-U4V0 / 591P-23383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415852-P00-U4V0 / 590P-23415852-P00-U4V0] 3PH, 4Q, 220-500V Supply, Universal Aux
Frame 1 (15, 35) A [TOF: 590P-53235010-P00-U4V0 / 591P-53235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-53316520-P00-U4V0 / 591P-53316520-P00-U4V0] Frame 6 (1250, 1600, 1950) A [TOF: 590P-53419560-P00-U4V0 / 591P-53419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-534270H0-P00-U4V0 / 591P-534270H0-P00-U4V0] 3PH, 4Q, 220-500V Supply, 115V Aux
Frame 3 (180, 270) A [TOF: 590P-53327031-P00-U4V0 / 591P-53327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383041-P00-U4V0 / 591P-53383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415851-P00-U4V0 / 591P-53415851-P00-U4V0] 3PH, 4Q, 220-500V Supply, 230V Aux
Frame 3 (180, 270) A [TOF: 590P-53327032-P00-U4V0 / 591P-53327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383042-P00-U4V0 / 591P-53383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415852-P00-U4V0 / 591P-53415852-P00-U4V0]
3PH, 4Q, 500-600V Supply, 115V Aux
Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383041-P00-U4V0 / 591P-63383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415851-P00-U4V0 / 591P-63415851-P00-U4V0] 3PH, 4Q, 500-600V Supply, 230V Aux
Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383042-P00-U4V0 / 591P-63383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415852-P00-U4V0 / 591P-63415852-P00-U4V0] 3PH, 4Q, 500-690V Supply, Universal Aux Frame 6 (1250, 1600, 1950) A [TOF: 590P-73419560-P00-U4V0 / 591P-73419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-734270H0-P00-U4V0 / 591P-734270H0-P00-U4V0]
Frame Dimensions: Frame 1 (200(W) x 375(H) x 220(D) mm) – approx. 6.4kg Frame 2 (200(W) x 434(H) x 292(D) mm) – approx. 10.5kg Frame 3 (180A) (250(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 3 (270A) (300(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 4 (253(W) x 700(H) x 358(D) mm) – approx. 44kg Frame 5 (506(W) x 700(H) x 358(D) mm) – approx. 90kg Frame 6 (686(W) x 715(H) x 378(D) mm) – approx. 110kg Frame H (850(W) x 956(H) x 417(D) mm) – approx. 270kg
Options: There are a number of language options available for each drive. All drives must now be sold with Keypads. There are also a number of purchasable additional options listed below: Note: the last block of the part number contains 4 digits, the last 3 of which denote the purchasable options. These will be referred to as option X, Y, and Z (XYZ).
Option X 0 - No Keypad 4 - 6901 Keypad [6901-00-G]
Option Y A - Analog Tacho [AH500935U001-2] G - Glass Fiberoptic Encoder [5901/1] P - Plastic Fiberoptic Encoder [5701/1] V - Armature Voltage [Fitted as standard] W - Wire-ended Encoder [AH387775U001-1]
Option Z 0 - None C - ControlNet [6053-CNET-00-G] D - DeviceNet [6055-DNET-00] E - Ethernet [6055-ENET-00] L - Link [6055-LINK-00] M - ModBus+ [6055-MBP-00] N - CanOpen [6055-CAN-00] P - Profibus [6055-PROF-00] R - RS485 / RS422 [6055-EI00-00]
Additional Options A - Airflow Kit [LA466717U001-1]
| 590P-53215010-P00-U4A0 | 15A Four Quadrant Digital DriAe (1) |
| 590P-23215010-P00-U4A0 | 15A Four Quadrant Digital DriAe (1) |
| 590P-53235010-P00-U4A0 | 35A Four Quadrant Digital DriAe (1) |
| 590P-23235010-P00-U4A0 | 35A Four Quadrant Digital DriAe (1) |
| 590P-53240020-P00-U4A0 | 40A Four Quadrant Digital DriAe (2) |
| 590P-53270020-P00-U4A0 | 70A Four Quadrant Digital DriAe (2) |
| 590P-53311020-P00-U4A0 | 110A Four Quadrant Digital DriAe (2) |
| 590P-53316520-P00-U4A0 | 165A Four Quadrant Digital DriAe (2) |
| 590P-53318032-P00-U4A0 | 180A Four Quadrant Digital DriAe |
| 590P-53318032-P41-U4A0 | 180A Four Quadrant Digital DriAe |
| 590P-53327032-P00-U4A0 | 270A Four Quadrant Digital DriAe |
| 590P-53327032-P41-U4A0 | 270A Four Quadrant Digital DriAe |
| 590P-53338042-A00-U4A0 | 380A Four Quadrant Digital DriAe (4) |
| 590P-53350042-A00-U4A0 | 500A Four Quadrant Digital DriAe (4) |
| 590P-53372542-A00-U4A0 | 725A Four Quadrant Digital DriAe (4) |
| 590P-53383042-A00-U4A0 | 830A Four Quadrant Digital DriAe (4) |
| 591P-53215010-P00-U4A0 | 15A Two Quadrant Digital DriAe (1) |
| 591P-53235010-P00-U4A0 | 35A Two Quadrant Digital DriAe (1) |
| 591P-53240020-P00-U4A0 | 40A Two Quadrant Digital DriAe (2) |
| 591P-53270020-P00-U4A0 | 70A Two Quadrant Digital DriAe (2) |
| 591P-53311020-P00-U4A0 | 110A Two Quadrant Digital DriAe (2) |
| 591P-53316520-P00-U4A0 | 165A Two Quadrant Digital DriAe (2) |
| 591P-53318032-P00-U4A0 | 180A Two Quadrant Digital DriAe |
| 591P-53318032-P41-U4A0 | 180A Two Quadrant Digital DriAe |
| 591P-53327032-P00-U4A0 | 270A Two Quadrant Digital DriAe |
| 591P-53327032-P41-U4A0 | 270A Two Quadrant Digital DriAe |
| 591P-53338042-A00-U4A0 | 380A Two Quadrant Digital DriAe (4) |
| 591P-53350042-A00-U4A0 | 500A Two Quadrant Digital DriAe (4) |
| 591P-53372542-A00-U4A0 | 725A Two Quadrant Digital DriAe (4) |
| 591P-53383042-A00-U4A0 | 830A Two Quadrant Digital DriAe (4) |
| 506-00-20-00 | 3A |
| 507-00-20-00 | 6A |
| 508-00-20-00 | 12A |
| 512C-04-00-00-00 | 4A |
| 512C-08-00-00-00 | 8A |
| 512C-16-00-00-00 | 16A |
| 512C-32-00-00-00 | 32A |
| 514C-04-00-00-00 | 4A |
| 514C-08-00-00-00 | 8A |
| 514C-16-00-00-00 | 16A |
| 514C-32-00-00-00 | 32A |
| 6055-EI00-00 | 485 COMMUNICATION |
| AH3857775U002 | ENCODER CARD |
| 6055-PROF-00 | PROFIBUS CARD |
| 590C/0350/5/3/0/1/0/00 | 35A Four Quadrant Digital Drive |
| 590C/0700/5/3/0/1/0/00 | 70A Four Quadrant Digital Drive |
| 590C/1100/5/3/0/1/0/00 | 110A Four Quadrant Digital Drive |
| 590C/1500/5/3/0/1/0/00 | 150A Four Quadrant Digital Drive |
| 590C/1500/5/3/0/1/0/41 | 150A Four Quadrant Digital Drive |
| 590C/1800/5/3/0/1/0/00 | 180A Four Quadrant Digital Drive |
| 590C/1800/5/3/0/1/0/41 | 180A Four Quadrant Digital Drive |
| 590C/2700/5/3/0/1/0/00 | 270A Four Quadrant Digital Drive |
| 590C/2700/5/3/0/1/0/41 | 270A Four Quadrant Digital Drive |
| 591C/0350/5/3/0/1/0/00 | 35A Two Quadrant Digital Drive |
| 591C/0700/5/3/0/1/0/00 | 70A Two Quadrant Digital Drive |
| 591C/1100/5/3/0/1/0/00 | 110A Two Quadrant Digital Drive |
| 591C/1500/5/3/0/1/0/00 | 150A Two Quadrant Digital Drive |
| 591C/1500/5/3/0/1/0/41 | 150A Two Quadrant Digital Drive |
| 591C/1800/5/3/0/1/0/00 | 180A Two Quadrant Digital Drive |
| 591C/1800/5/3/0/1/0/41 | 180A Two Quadrant Digital Drive |
| 591C/2700/5/3/0/1/0/00 | 270A Two Quadrant Digital Drive |
| 591C/2700/5/3/0/1/0/41 | 270A Two Quadrant Digital Drive |
| 591P-53412560-P00-U4A0 | 500V |
| 591P-53416060-P00-U4A0 | |
| 591P-53419560-P00-U4A0 | |
| 590P-53412560-P00-U4A0 | |
| 590P-53416060-P00-U4A0 | |
| 590P-53419560-P00-U4A0 | |
| 591P-73412560-P00-U4A0 | 690v |
| 591P-73416060-P00-U4A0 | |
| 591P-73418560-P00-U4A0 | |
| 590P-73412560-P00-U4A0 | |
| 590P-73416060-P00-U4A0 | |
| 590P-73418560-P00-U4A0 |
