Part No: 650G-21130010-001P00-A2
Phase : Single Phase (230V)
Supply Voltage : 220-240V
Power Rating : 0.55KW
Current Rating : 3.0A
Filter : Not Fitted

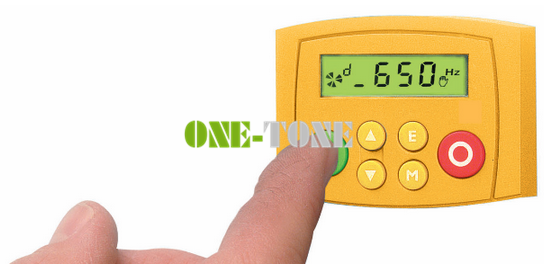

Keypad : Fitted
Brake Switch : Not Fitted
Description:

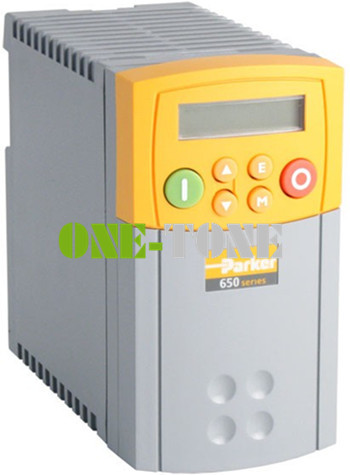

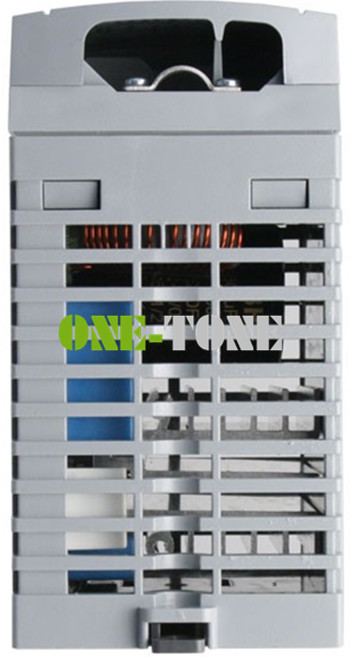

The Parker AC650G is an entry level adjustable speed drive designed to provide cost-effective control of AC induction motors used in many everyday industrial applications. Its simplicity makes the AC650G ideally suited for use in standalone motor applications where previously a drive would have been considered too complex.

Identical to the 650V Series AC Drive - Except users are unable to install a 650V configuration into this drive, it will need re-configuring

Overload:  150 % for 30 seconds

Input Frequency:  45...65 Hz

Output Frequency:  0...240 Hz

Supply Type:  Ground referenced (TN) or non-ground referenced (IT)

Operating Temperature:  0 to +40 °C

Storage Temperature:  -25 to +55 °C

Product Enclosure Rating:  IP20 (UL open type) suitable for cubicle mount

Replaces:
650V-21115010-001P00-A2 650V/002/230/0/00/DISPR/UK/RS0/0 (will need re-configuring)

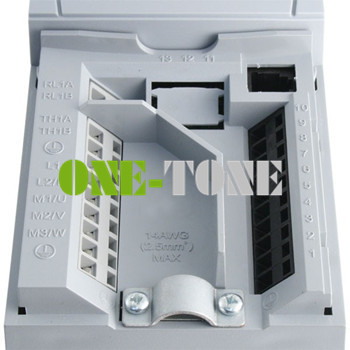

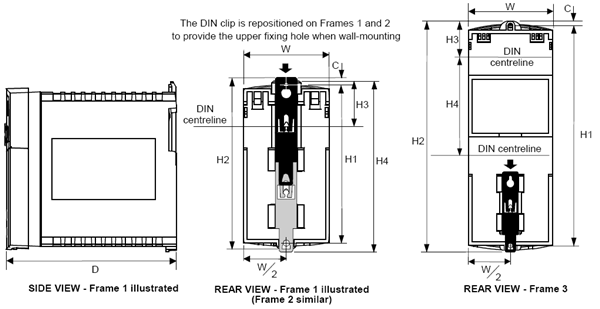

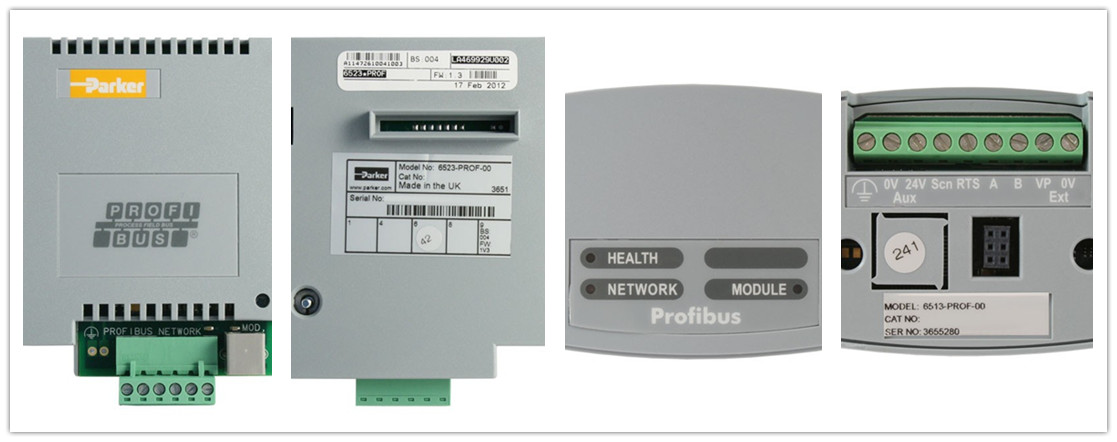

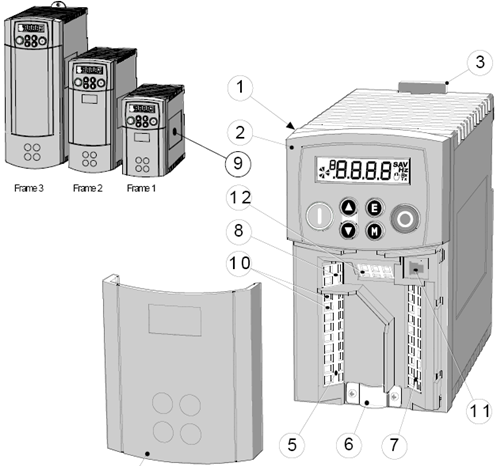

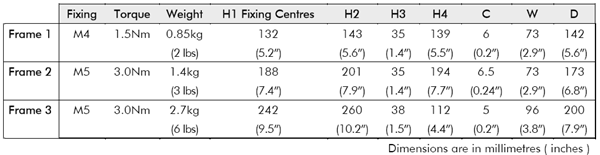

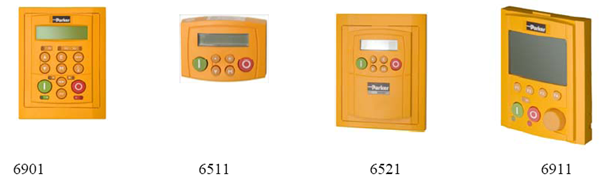

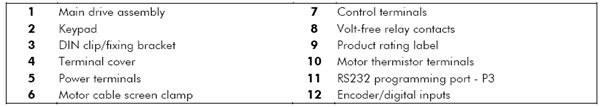

Overview of the Drive --- component Identification Mechanical InstallationAccessories
