Part No: 690-431550B0-BF0P00-A400 (690PB/0022/400/3/F/0011/UK/0/0/0/0/0)
Phase : Three Phase (415V)
Supply Voltage : 400-460V
Power Rating : 2.2KW
Current Rating : 5.5A
Filter : Fitted
Keypad : Fitted
Brake Switch : Fitted
System Board : Not Fitted
Auxiliary Supply : No Auxiliary Supply
Description:

The AC690+ Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-500V 3-phase 0.75 to 1000kW and 220V-240V 0.75 to 55kW.

Product Code Breakdown for this drive is as follows;

[690-]  : AC690+ Series AC Drive

[43]  : 400/460VAC 3-phase input

[1550B]: 2.20kW / 5.50A Constant Torque Rating - Frame Size 'B'

[0-]      : No Auxiliary Supply Option

[B]      : Brake Switch Fitted

[F]      : Filter Option Fitted

[0]      : No System Board Option Fitted

[P]       : Panel Mounted

[00-]   : No Special Option

[A]     : English (50Hz) Destination

[4]     : 6901 Keypad Option Fitted

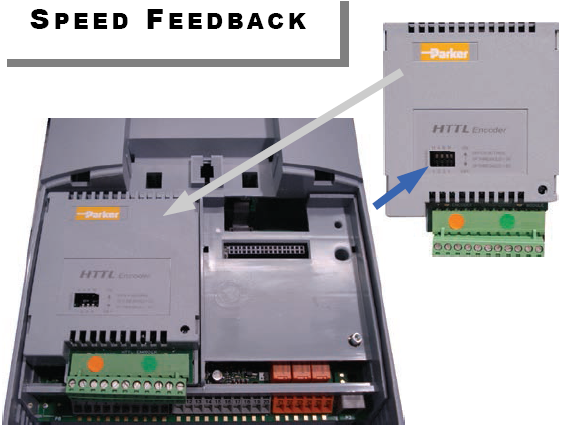

[0]     : No Speed Feedback Option

[0]     : No Communications Option

Old Part Number [690PB/0022/400/3/F/0011/UK/0/0/0/0/0]

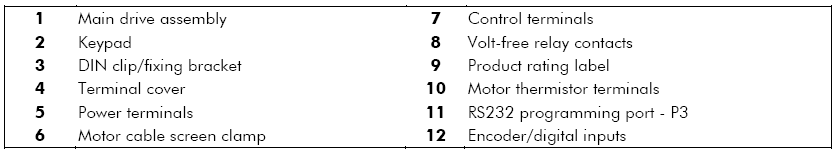

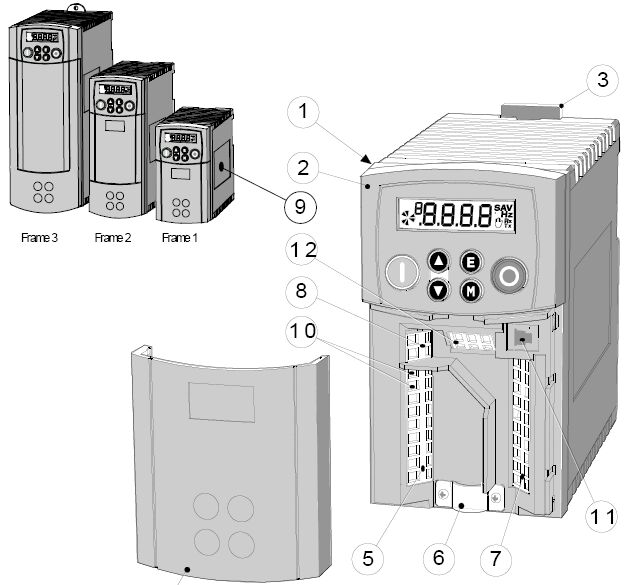

Component Identification

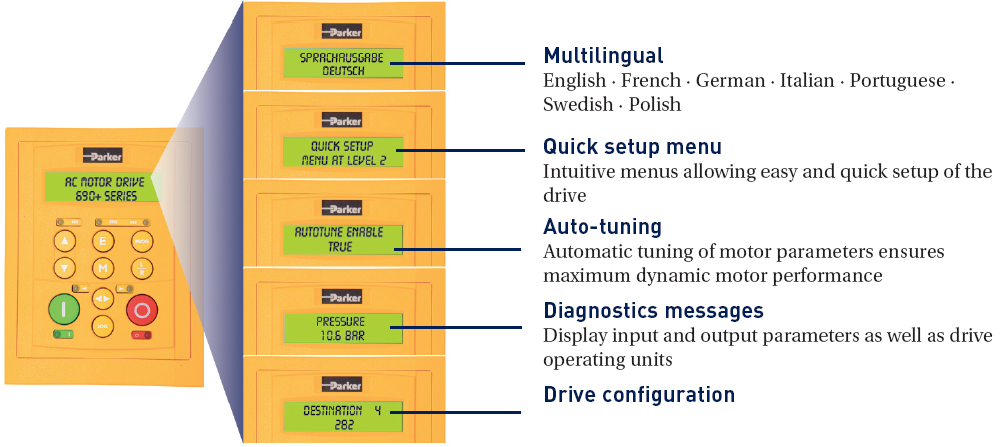

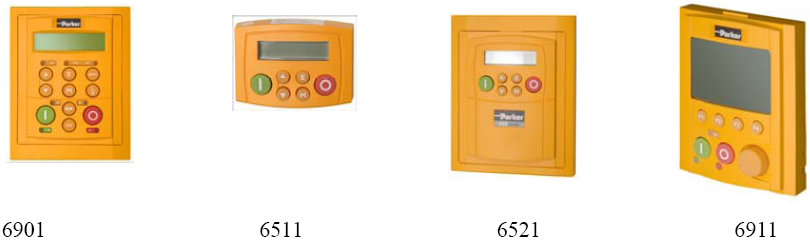

Operator Keypads

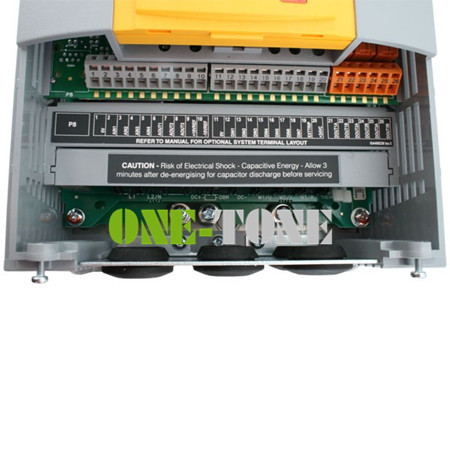

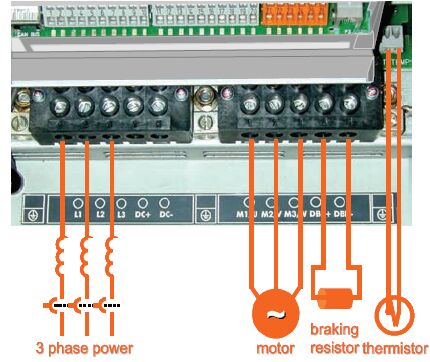

Power Connections

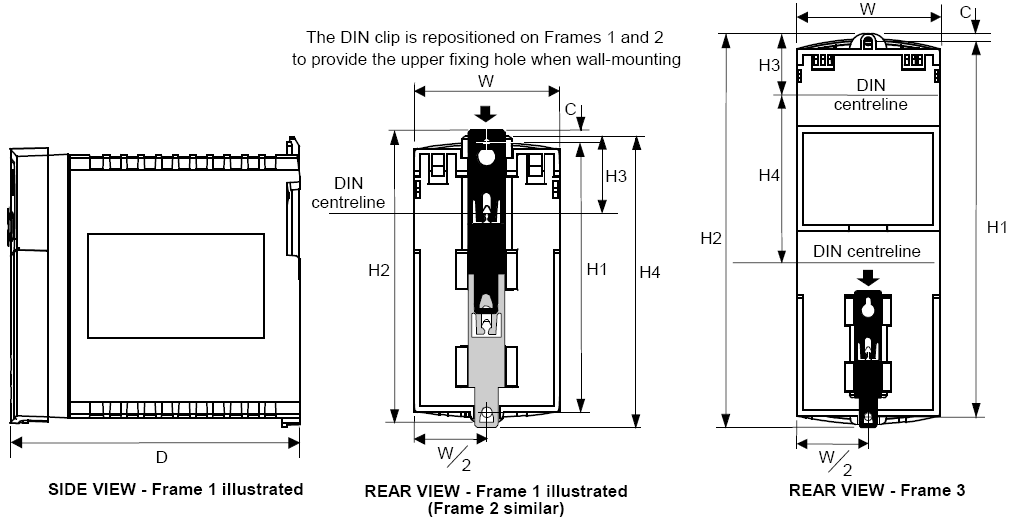

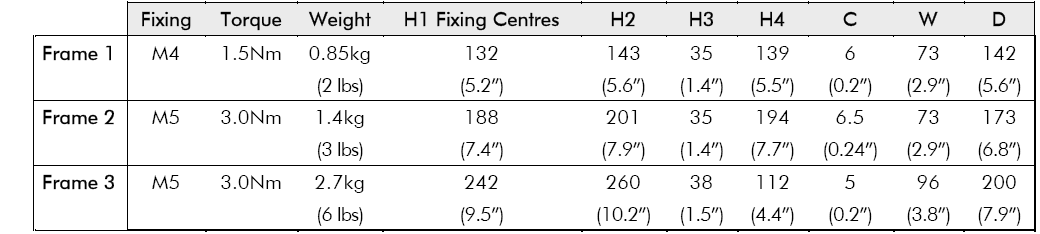

Mechanical Installation

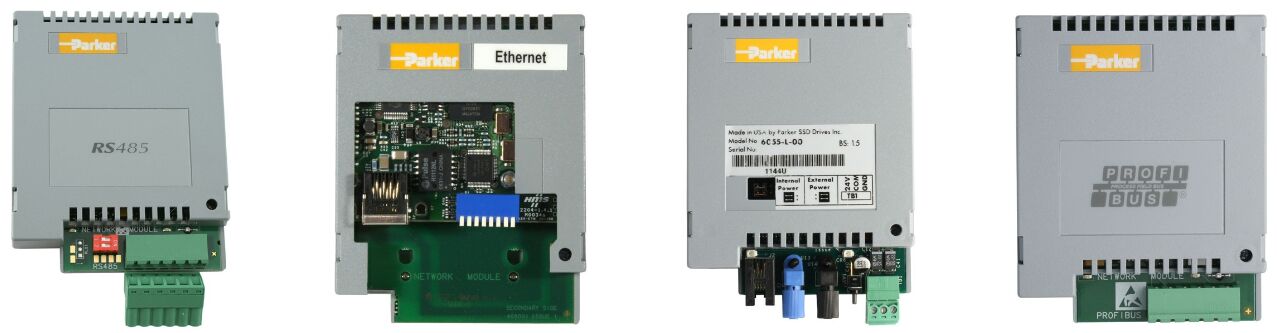

Spare parts and Accessories

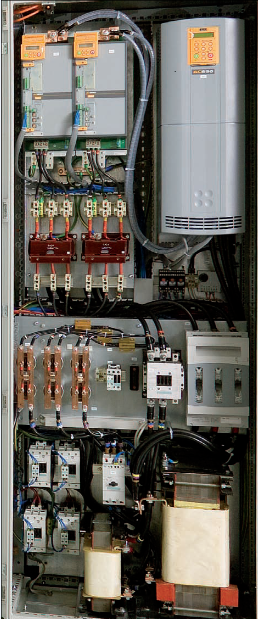

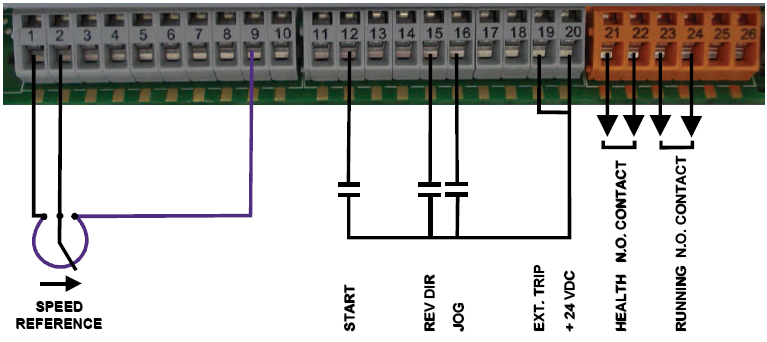

Application
