Part No: 690-433145F1-000P00-A400 (690PF/0750/400/0011/UK/0/0/0/0/0/115/0)
Phase : Three Phase (415V)
Supply Voltage : 400-460V
Power Rating : 75.0KW
Current Rating : 145.0A
Filter : Not Fitted
Keypad : Fitted
Brake Switch : Not Fitted
System Board : Not Fitted
Auxiliary Supply : 115V Auxiliary Supply
Description:

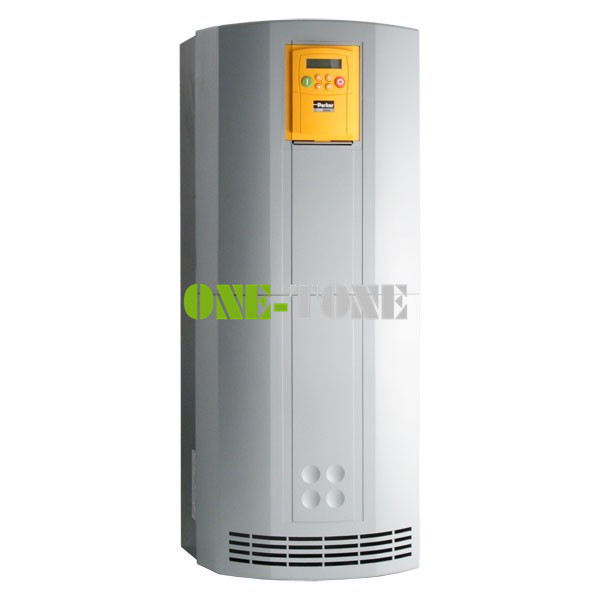

75.0kW /  145A Constant Torque Rating (90kW / 156A Quad) - Frame 'F'

The AC690+ Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-500V 3-phase 0.75 to 1000kW and 220V-240V 0.75 to 55kW.

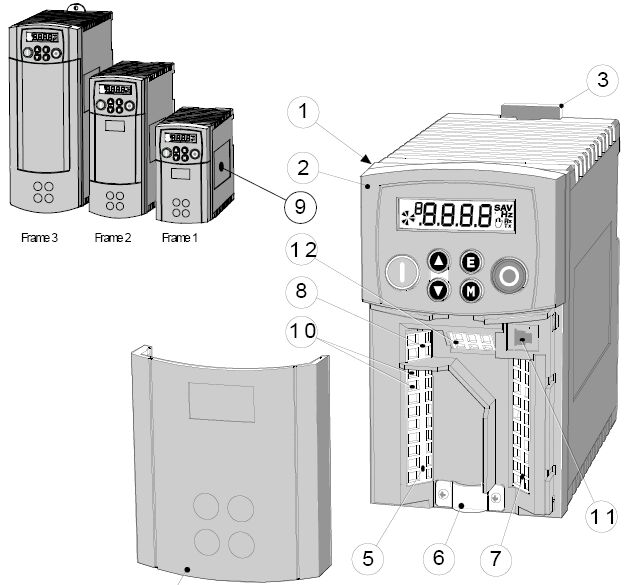

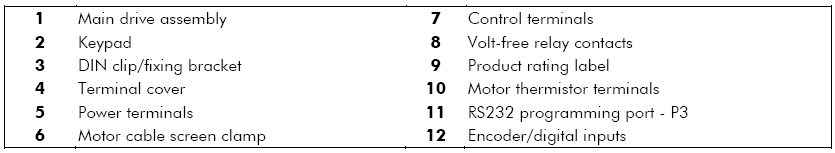

Component Identification

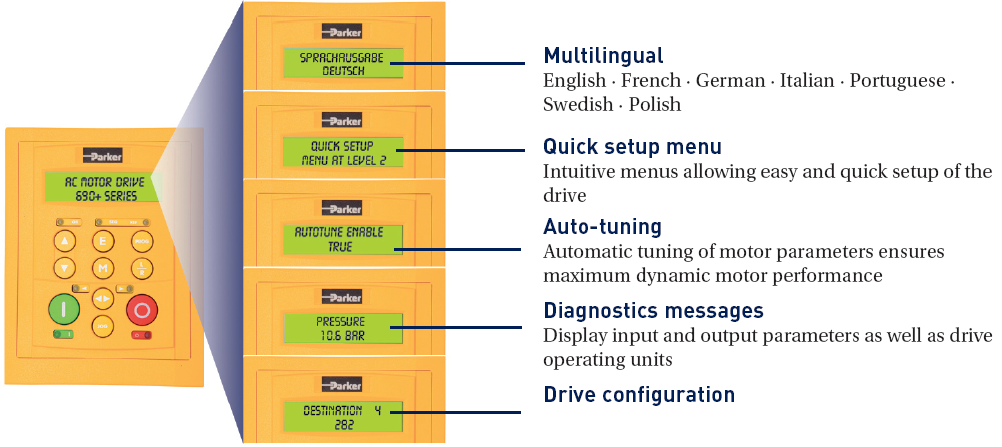

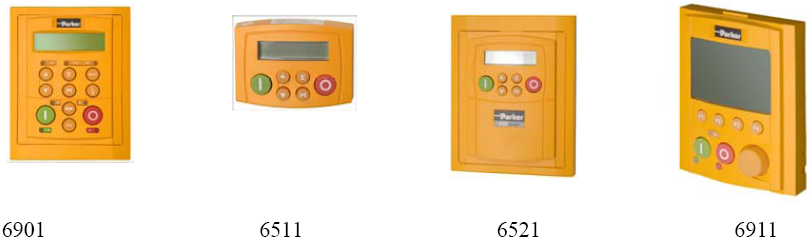

Operator Keypads

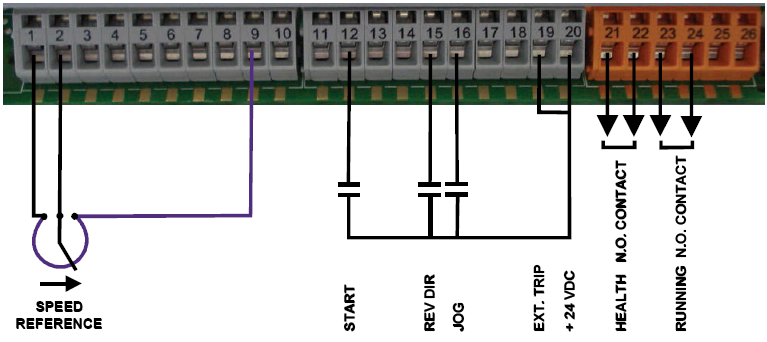

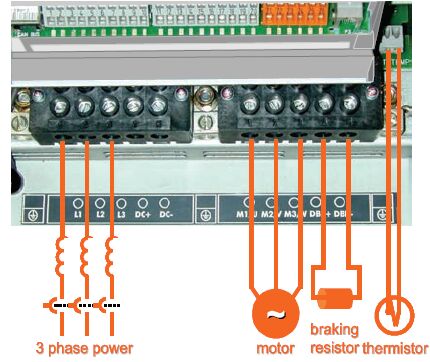

Power Connections

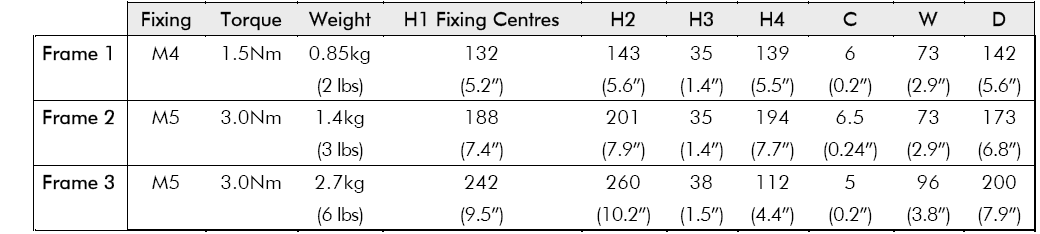

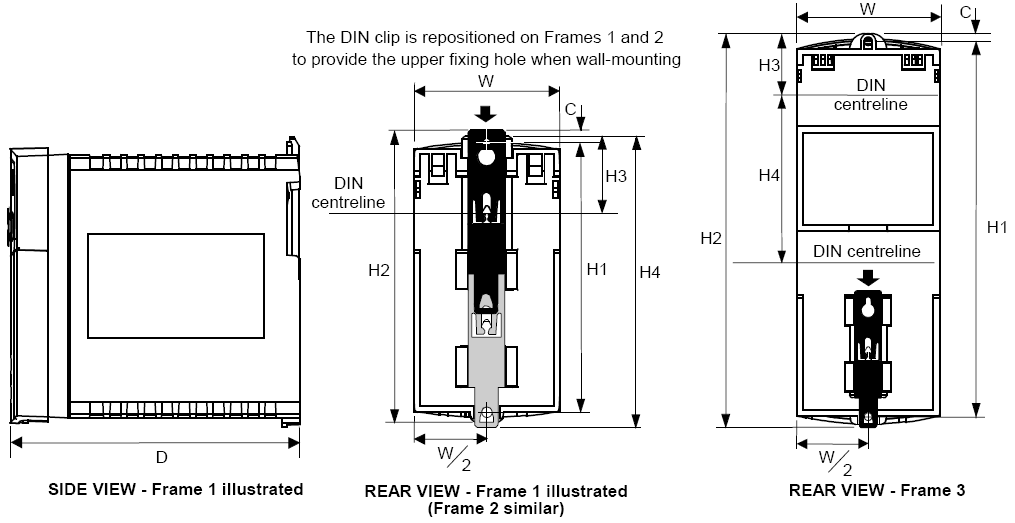

Mechanical Installation

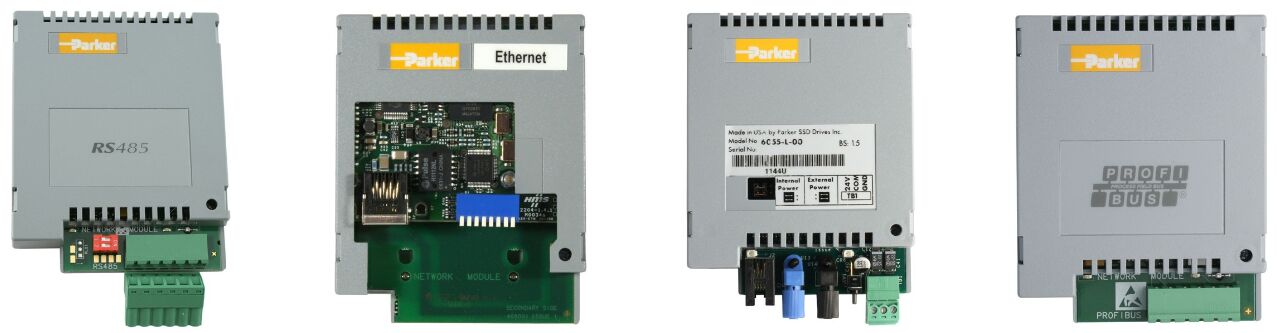

Spare parts and Accessories

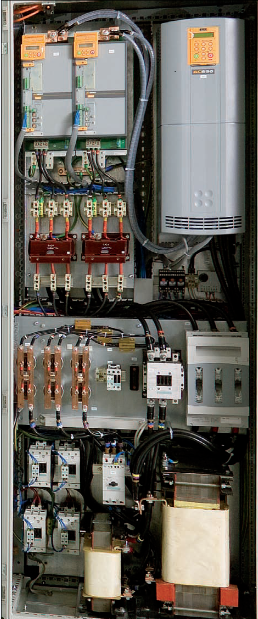

Application
