Details

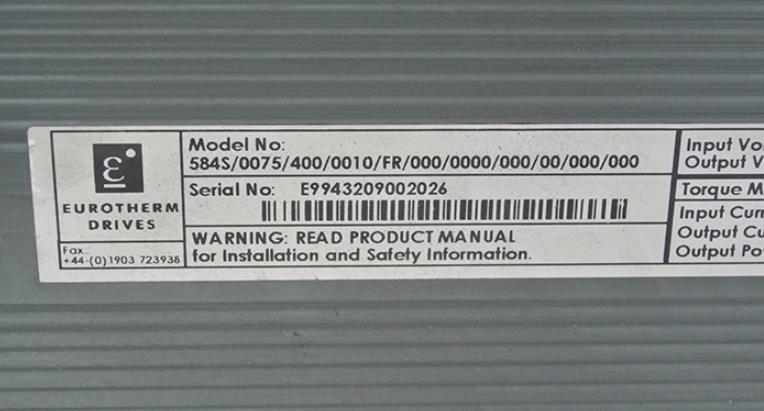

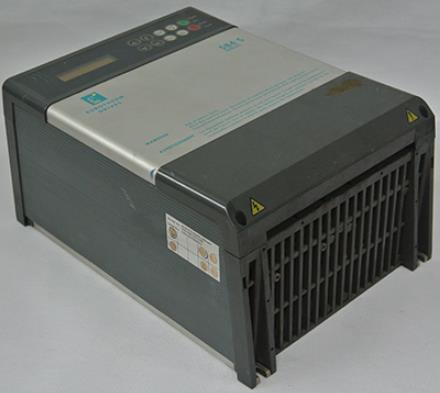

584S/0075/400/0010/UK/000/0000 | 584S Series - 7.5kW - 3PH, 380V / 460V - Standard Livery - IP20 Protected Panel Mount - Keypad Fitted - English - No Feedback Option - No Comms
The Range: Eurotherm Drives Inverter circa 1993 – 1999.
Frame Sizes:
Below are the power ratings for the different options and frame sizes.
TOF = Top of Frame. 3PH, 230V
Frame 4 (0.75, 1.1, 1.5, 2.2, 4) kW
[TOF: 584S/0040/230/0010/UK/000/0000/000/00/000/000]
Frame 5 (5.5, 7.5) kW
[TOF: 584S/0075/230/0010/UK/000/0000/000/00/000/000]
Frame 6 (11, 15, 18) kW
[TOF: 584S/0180/230/0010/UK/000/0000/000/00/000/000]
Frame 7 (22, 30, 37) kW
[TOF: 584S/0370/230/0010/UK/000/0000/000/00/000/000]
3PH, 400V
Frame 4 (0.75, 1.1, 1.5, 2.2, 4, 5.5, 7.5) kW
[TOF: 584S/0075/400/0010/UK/000/0000/000/00/000/000]
Frame 5 (11, 15) kW
[TOF: 584S/0150/400/0010/UK/000/0000/000/00/000/000]
Frame 6 (18, 22, 30, 37) kW
[TOF: 584S/0370/400/0010/UK/000/0000/000/00/000/000]
Frame 7 (45, 55, 75) kW
[TOF: 584S/0750/400/0010/UK/000/0000/000/00/000/000]
Frame Dimensions: Frame 4 (228(W) x 318(H) x 157(D) mm) – up to 9.3kg Frame 5 (228(W) x 468(H) x 157(D) mm) – up to 12kg Frame 6 (234(W) x 672(H) x 298(D) mm) – up to 34kg Frame 7 (398(W) x 838(H) x 336(D) mm) – up to 84kg
Features
Servomotor:No
EMC Filter:No
Brand:Parker Hannifin
Active Front End:No
Mounting:Panel Mount
Open Loop (V/Hz):Yes
Regen Type:No Regen
Closed-Loop Vector:No
Output:NA
Permanent Magnet AC:No
Sensorless Vector:Yes
Ingress Protection Code:IP20
Standard Comms:No
Power / Current:7.5kW
Option Comms 1:No
Drive Type:AC Inverter Drives
Option Comms 2:No
Manufacturers Series:584S
Common Supply:No
Supply Input:3PH, 400V
