Product Description:

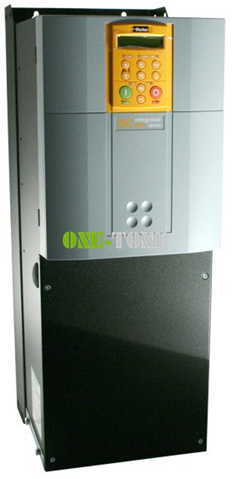

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.

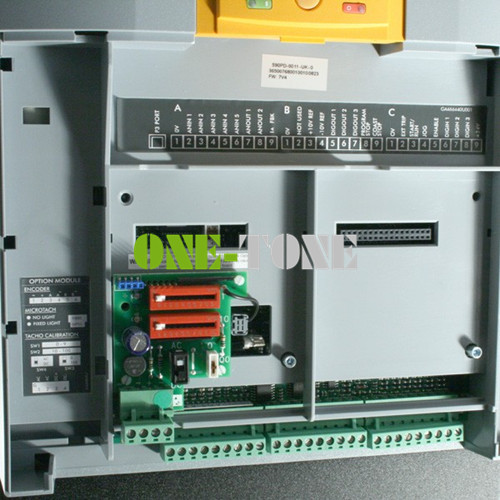

All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.

Specification:

Parker SSD 591P, 2Q DC Drive - 3PH, 220-500VAC - 380A Output - Analogue Tacho F/B - 230VAC, 1PH Auxiliary Voltage - (Formerly Eurotherm Drives) - Frame 3

Frame 1 - 15A, 35A

Frame 2 - 40A, 70A, 110A, 165A

Frame 3 - 180A, 270A

Frame 4 - 380A, 500A, 725A, 830A

Frame 5 - 1580A

Frame 6 - 1250A, 1600A, 1950A

Frame H - 1200A, 1700A, 2200A, 2700A

Output Current: Rating 15 - 2700A
