PARKER History
Parker Hannifin has bought SSD Drives (formerly Eurotherm Drives), from the private equity firm Compass Partners International, for an undisclosed sum. SSD, which makes AC, DC and servo drives, and Parvex motors, has become part of Parker`s Automation group.
Parker SSD products bring the right mix of features and functionality, developed from over three decades of experience. In the industrial automation arena, Parker SSD products provide coordinated system solutions for printing, converting and web handling, wire, plastics, paper, textiles, mining, metals, HVAC, ski lifts, and test stands. For renewable energy solutions, Parker SSD Drives offers a broad line of grid tie inverters, used in solar, wind, and wave power applications, as well as utility scale battery energy storage systems. For the mobile market, Parker SSD supplies motor, drive, generator, and charging systems used in electric and hybrid vehicles, and a unique hybrid hydraulic/electric platform for utility trucks.
Backed by the global reach of Parker, SSD Drives provides expert sales, application, and service support worldwide.
Product Description:

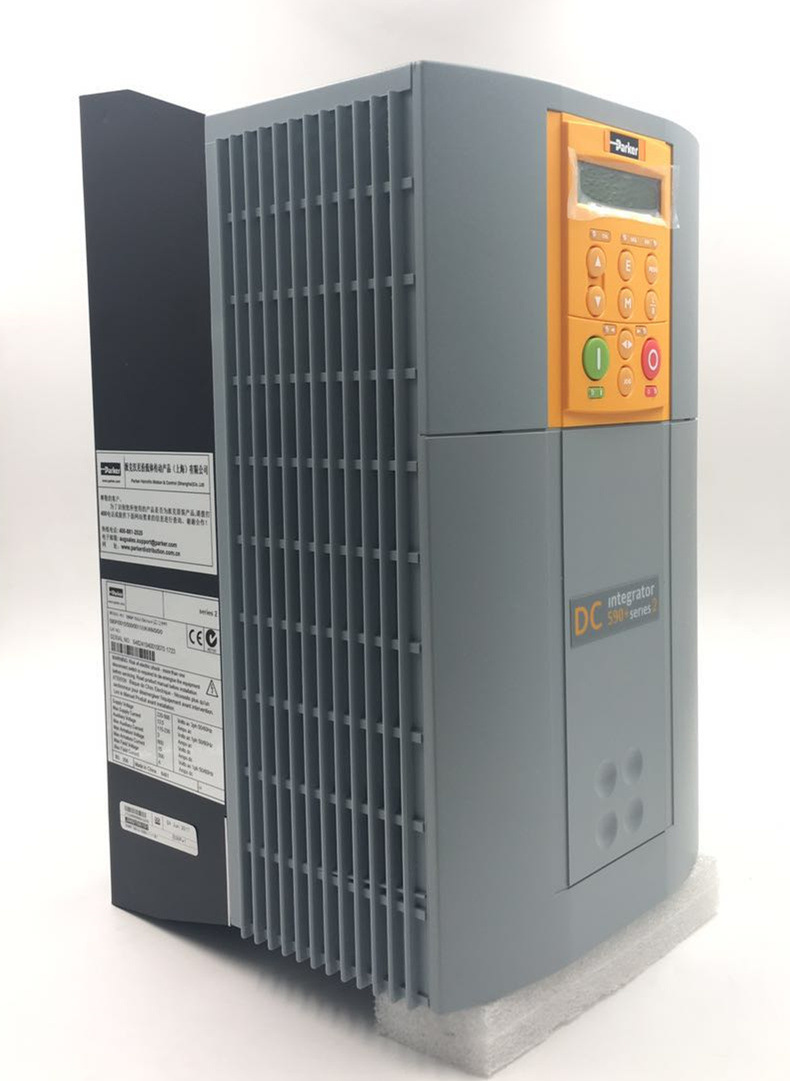

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.
All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.
No Keypad, encoder feedback or comms options. Simple to set-up in Digital, fully-isolated Four Quadrant form.

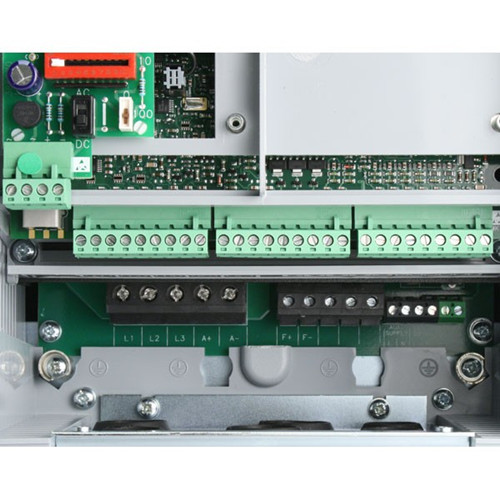

Terminals include:- 5 x Analogue Inputs (4 x Configurable). 3 x Analogue Outputs (2 x Configurable). Tacho input (or internal AVF) Feedback. 9 x Digital inputs - 5 are Configurable including two as encoder inputs for a second or line encoder. 3 x Digital Outputs (all Configurable). + & - 10V for Potentiometers.
Rated at 40C Ambient.

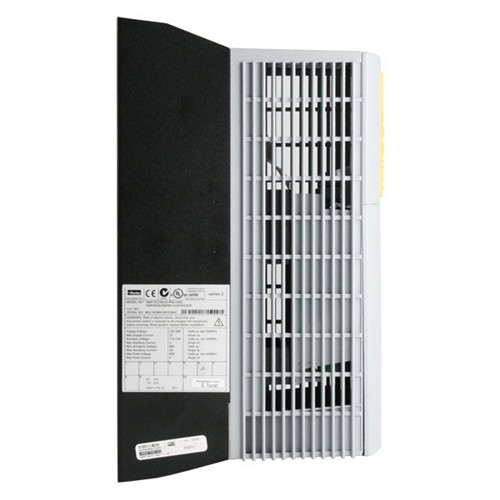

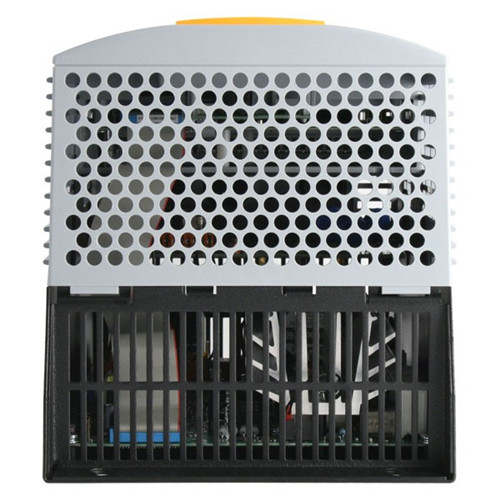

Ventilation space above - 160mm. Ventilation space below - 100mm. Ventilation space at sides - 0mm. Heat Loss at max output - 234W. Panel mount with M6 screw fixings on 418 x 140mm centres.
Its previous product code was 590P-0035-220-0010-UK-AN-0-0-0.
Replaces:- SSD and Eurotherm Drives 590C-0070, 590A-0070, 545-0700 analogue products. Requires external back-up high speed fuses.
Product Dimensions: 200mm Wide x 292mm Deep x 434mm High. Weight is 10.5kg
Packaging Dimensions: 53cm Length, 31cm Wide, 42cm Height Weight is 11.44Kgs
Details
590P-53270020-P00-U0A0 | 590 Series Regen Digital Drive - 3PH, 220-500v - 70A, Frame 2 - Universal 115v-230v - Panel Mounting - No Special Options - English (50/60Hz) - No Keypad - Analog Tacho - None
The Range: The 590P range is a 4 Quadrant Parker SSD Drive. The 591P range is a 2 Quadrant Parker SSD Drive.
Frame Sizes: Below are the power ratings for the different options and frame sizes. TOF = Top of Frame. 590P/591P 3PH, 4Q, 110-220V Supply, Universal Aux
Frame 1 (15, 35) A [TOF: 590P-23235010-P00-U4V0 / 591P-23235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-23316520-P00-U4V0 / 591P-23316520-P00-U4V0] 3PH, 4Q, 110-220V Supply, 115V Aux
Frame 3 (180, 270) A [TOF: 590P-23327031-P00-U4V0 / 591P-23327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383041-P00-U4V0 / 591P-23383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415851-P00-U4V0 / 591P-23415851-P00-U4V0] 3PH, 4Q, 110-220V Supply, 230V Aux
Frame 3 (180, 270) A [TOF: 590P-23327032-P00-U4V0 / 591P-23327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383042-P00-U4V0 / 591P-23383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-23415852-P00-U4V0 / 590P-23415852-P00-U4V0] 3PH, 4Q, 220-500V Supply, Universal Aux
Frame 1 (15, 35) A [TOF: 590P-53235010-P00-U4V0 / 591P-53235010-P00-U4V0] Frame 2 (40, 70, 110, 165) A [TOF: 590P-53316520-P00-U4V0 / 591P-53316520-P00-U4V0] Frame 6 (1250, 1600, 1950) A [TOF: 590P-53419560-P00-U4V0 / 591P-53419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-534270H0-P00-U4V0 / 591P-534270H0-P00-U4V0] 3PH, 4Q, 220-500V Supply, 115V Aux
Frame 3 (180, 270) A [TOF: 590P-53327031-P00-U4V0 / 591P-53327031-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383041-P00-U4V0 / 591P-53383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415851-P00-U4V0 / 591P-53415851-P00-U4V0] 3PH, 4Q, 220-500V Supply, 230V Aux
Frame 3 (180, 270) A [TOF: 590P-53327032-P00-U4V0 / 591P-53327032-P00-U4V0] Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383042-P00-U4V0 / 591P-53383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-53415852-P00-U4V0 / 591P-53415852-P00-U4V0]
3PH, 4Q, 500-600V Supply, 115V Aux
Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383041-P00-U4V0 / 591P-63383041-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415851-P00-U4V0 / 591P-63415851-P00-U4V0] 3PH, 4Q, 500-600V Supply, 230V Aux
Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383042-P00-U4V0 / 591P-63383042-P00-U4V0] Frame 5 (1580) A [TOF: 590P-63415852-P00-U4V0 / 591P-63415852-P00-U4V0] 3PH, 4Q, 500-690V Supply, Universal Aux Frame 6 (1250, 1600, 1950) A [TOF: 590P-73419560-P00-U4V0 / 591P-73419560-P00-U4V0] Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-734270H0-P00-U4V0 / 591P-734270H0-P00-U4V0]
Frame Dimensions: Frame 1 (200(W) x 375(H) x 220(D) mm) – approx. 6.4kg Frame 2 (200(W) x 434(H) x 292(D) mm) – approx. 10.5kg Frame 3 (180A) (250(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 3 (270A) (300(W) x 485(H) x 234(D) mm) – approx. 20kg Frame 4 (253(W) x 700(H) x 358(D) mm) – approx. 44kg Frame 5 (506(W) x 700(H) x 358(D) mm) – approx. 90kg Frame 6 (686(W) x 715(H) x 378(D) mm) – approx. 110kg Frame H (850(W) x 956(H) x 417(D) mm) – approx. 270kg
Options: There are a number of language options available for each drive. All drives must now be sold with Keypads. There are also a number of purchasable additional options listed below: Note: the last block of the part number contains 4 digits, the last 3 of which denote the purchasable options. These will be referred to as option X, Y, and Z (XYZ).
Option X 0 - No Keypad 4 - 6901 Keypad [6901-00-G]
Option Y A - Analog Tacho [AH500935U001-2] G - Glass Fiberoptic Encoder [5901/1] P - Plastic Fiberoptic Encoder [5701/1] V - Armature Voltage [Fitted as standard] W - Wire-ended Encoder [AH387775U001-1]
Option Z 0 - None C - ControlNet [6053-CNET-00-G] D - DeviceNet [6055-DNET-00] E - Ethernet [6055-ENET-00] L - Link [6055-LINK-00] M - ModBus+ [6055-MBP-00] N - CanOpen [6055-CAN-00] P - Profibus [6055-PROF-00] R - RS485 / RS422 [6055-EI00-00]
Additional Options A - Airflow Kit [LA466717U001-1]
Features
Supply Input:3PH, 220 / 500V
Sensorless Vector:No
Regen Type:4Q
Power / Current:70A
Current:70A
Output:NA
Permanent Magnet AC:No
Drive Type:DC Converter Drives
Closed-Loop Vector:No
Ingress Protection Code:IP20
Option Comms 1:No
Standard Comms:RS485 ASCII / BINARY
Option Comms 2:No
Brand:Parker Hannifin
Servomotor:No
Manufacturers Series:590P
Active Front End:No
Mounting:Panel Mount
Open Loop (V/Hz):No
Current Extra:4Q (Regen)
EMC Filter:No
Common Supply:No
