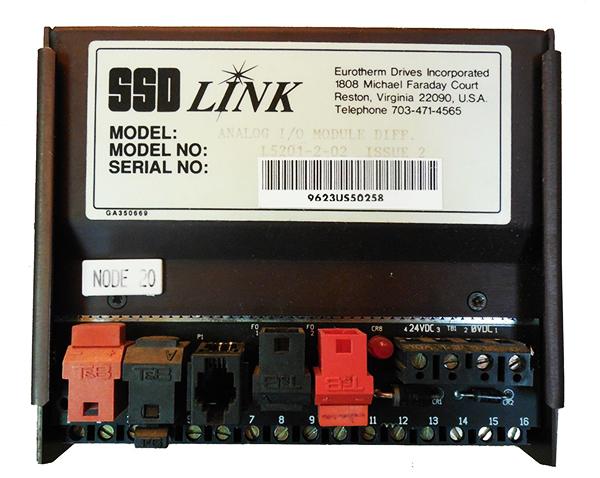

Parker SSD Drives L5201-2-02 Remote Analogue I/O Module (DIN Rail Mount)

Manufacturers part number is L5201-2-02 Sold under many names including Shackleton System drives, Eurotherm Drives, SSD Drives and Parker Hannifin SSD Drives Division.

L5201-2-02

Created and developed by the Parker Eurotherm SSD Link and Drives, and then originally, shipped from their headquarters in Virginia when this series was in production, the L5201-2-02 processor module designed for the Input and Output modules to be attached to a drive. Of course, these units are analog modules, not digital. The designation ID number is L5201-2-02, with a manual ID number of HA350679.

The standard dimensions of this unit are in line with the others in the series of Parker Eurotherm SSD processors: 579.12 millimeters by 243.84 mm by 234.84 mm, and weighing up to 6 pounds, or 2.72 kilograms. The standard operation voltage needed to use the L5201 module is a minimum of 20 volts of direct current, and can handle up to a maximum of 26 DCV.

This module is an analog input/output module that can be programmed to to complete functions such as taper and tension calculation, measuring diameter, and winder control. It is equipped with a total of six I/O analog points (five analog input points and one analog output points). All of these I/O entry points are compatible with voltages between 0 and 10 volts.

If your module is not functioning properly, our AX Control technicians are able to troubleshoot your device and find the issue. After the issue is found, AX Control can complete any repairs needed on the L5201-2-02, or any other drive. With the purchase of most automation parts for replacement, we can provide an exchange credit for your defective item. This process will allow your machine to be put back into production quickly and at the lowest possible price. Additionally, we will cover the shipping expenses for the return of your defective item.

L5201-2-02 Technical Specifications

Manual Number HA350679

Manufacturer Eurotherm Parker SSD

Model Analog Input/Output Unit

MPN L5201-2-02

Product Type Input/Output Module

Series SSD Link / Eurotherm Drives

Voltage 20/26VDC
