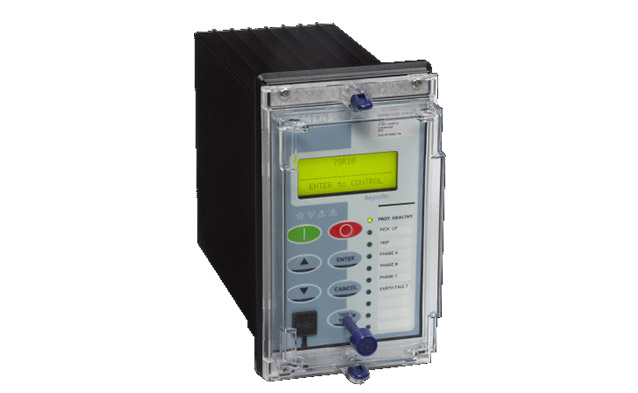

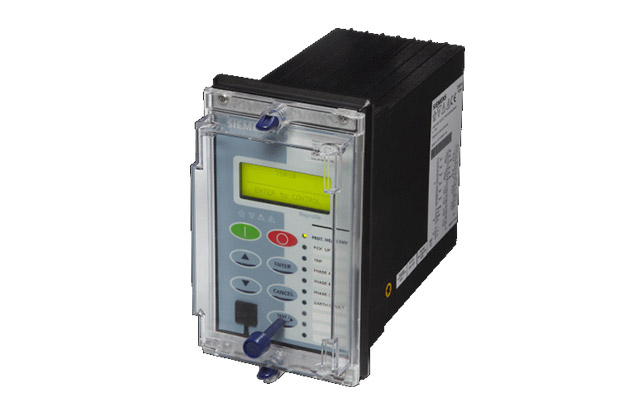

Reyrolle 7SR10 Argus
Overcurrent and Earth Fault Protection Relay
The Reyrolle 7SR10 Argus overcurrent and earth fault relay is a numerical overcurrent protection relay intended as a low cost solution for distribution and industrial applications. The Reyrolle 7SR10 Argus overcurrent and earth fault relay is developed using the latest generation of hardware technology and is available in multiple variants depending on power supply, Binary input/binary output configuration and data communication facility.
Housed in a 4U high, size 4 non draw-out case and these relays provide protection, monitoring, instrumentation, and metering with integrated input and output logic, data logging and fault reports. Communication access to the relay functionality is via a front USB port for local PC connection or rear electrical RS485 (optional) port for remote connection.
Functions
Protection Functions
Broken Conductor, Load Unbalance (46BC)
Negative Phase Sequence Overcurrent (46NPS)
Thermal Overload (49)
Instantaneous Overcurrent Protection (50)
Instantaneous Earth Fault (50N/G)
Time Delayed Overcurrent Protection (51)
Time Delayed Derived/Measured Earth Fault Protection (51N/G)
Cold Load Pickup (51C)
Circuit Breaker Fail (50BF)
Time Delayed Sensitive Earth Fault Protection (51SEF)
Inrush Restraint (81HBL2)
Instantaneous Sensitive Earth Fault (50SEF)
Supervision Functions
Control Functions
Features
