Home  >   Products  >  WAGO  >   WAGO 2002-1304 3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.50 mm²; blue

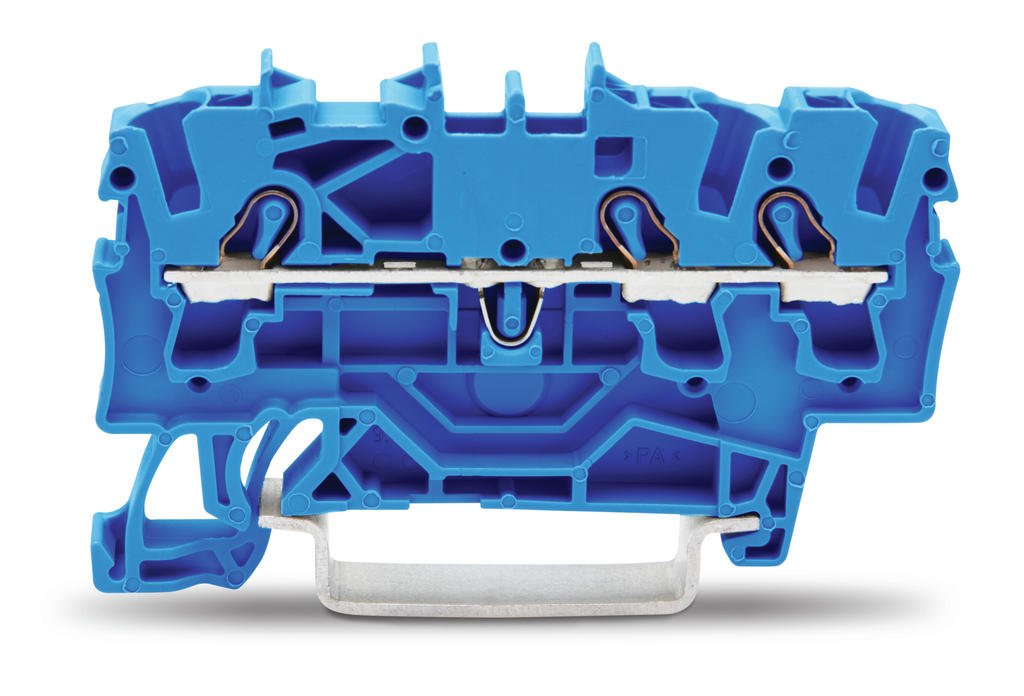

WAGO 2002-1304 3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.50 mm²; blue

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687
Product Name : WAGO 2002-1304 3-conductor through terminal block; 2.5 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.50 mm²; blue
Directions

Ratings per IEC/EN

Ratings perIEC/EN 60947-7-1

Nominal voltage (III/3)800V

Rated surge voltage (III/3)8kV

Rated current24A

Rated current 232A


Ratings per UL

Approvals perUL 1059

Rated voltage UL (Use Group B)600V

Rated current UL (Use Group B)20A

Rated voltage UL (Use Group C)600V

Rated current UL (Use Group C)20A

Ratings per CSA

Approvals perC22.2 No 158

Rated voltage CSA (Use Group B)600V

Rated current CSA (Use Group B)20A

Rated voltage CSA (Use Group C)600V

Rated current CSA (Use Group C)20A

Ex information

Ratings perATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)

Rated voltage EN (Ex e II)550V

Rated current (Ex e II)22A

Rated current (Ex e II) with jumper20A

Ratings (note)See installation notes in section “Knowledge” and

Downloads – Documentation – Additional Information: Technical explanations
