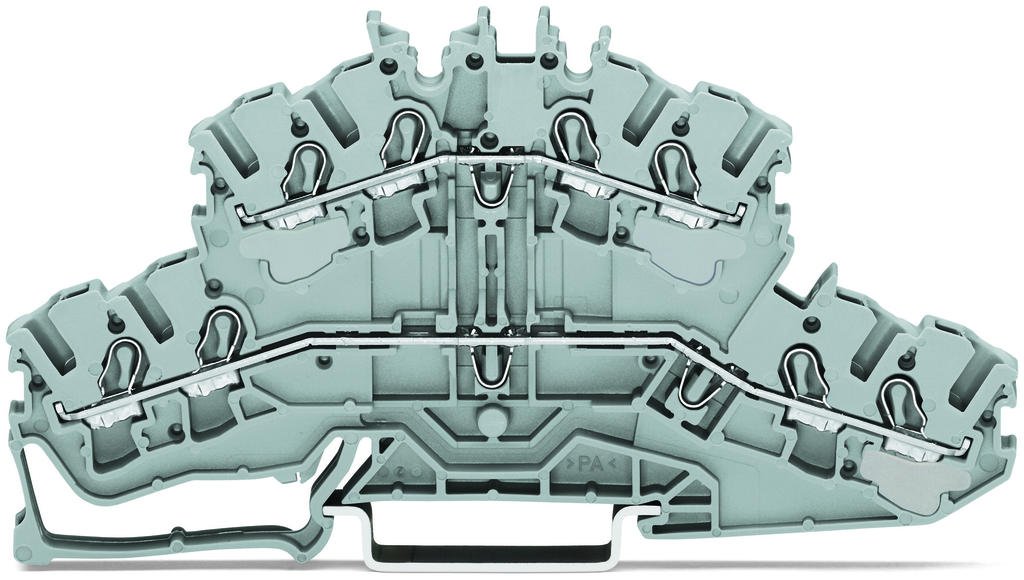

WAGO 2002-2401 TOPJOB® S 4-conductor double deck terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

Home > Products > WAGO > WAGO 2002-2401 TOPJOB® S 4-conductor double deck terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

WAGO 2002-2401 TOPJOB® S 4-conductor double deck terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 2002-2401 TOPJOB® S 4-conductor double deck terminal block; Through/through terminal block; L/L; without marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 800V

Rated surge voltage (III/3) 8kV

Rated current 24A

Rated current 2 28A

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 600V

Rated current UL (Use Group B) 20A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 20A
