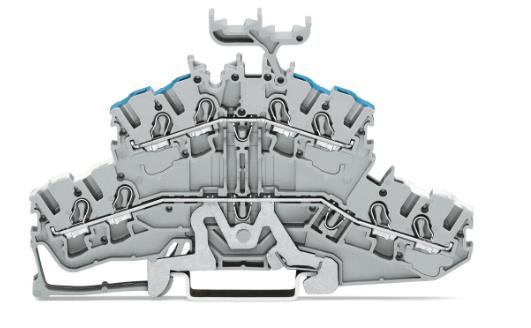

WAGO 2002-2448 4-conductor double deck terminal block; Shield/through terminal block; 2.5 mm²

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 2002-2448 4-conductor double deck terminal block; Shield/through terminal block; 2.5 mm²

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 800V

Rated impulse voltage (III/3) 8kV

Rated current 24A

Rated current 2 28A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals per UL 1059

Ratings per CSA

Approvals per CSA 22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 20A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20A

Rated voltage CSA (Use Group D) 600V

Rated current CSA (Use Group D) 20A

Ex information

Ratings per ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)

Power loss

Power loss, per pole (potential) 1.532W

Rated current IN for specified power loss 24A

Resistance value for specified, current-dependent power loss 0.001Ω

Inquiry

If you need any information before purchase, you can click our online service, If it is not availabl
