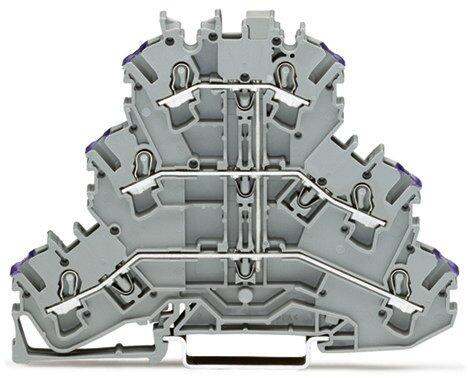

WAGO 2002-3208 Triple-deck terminal block; 6-conductor through terminal block; L; without marker carrier; suitable for Ex e II applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 2002-3208 Triple-deck terminal block; 6-conductor through terminal block; L; without marker carrier; suitable for Ex e II applications; internal commoning; conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 500V

Rated surge voltage (III/3) 6kV

Rated current 24A

Rated current 2 28A

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 300V

Rated current UL (Use Group B) 20A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20A

Ratings per CSA

Approvals per C22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 20A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20A
