Home  >   Products  >  WAGO  >   WAGO 2002-3231 TOPJOB S Triple-deck terminal block; Through/through/through terminal block; L/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

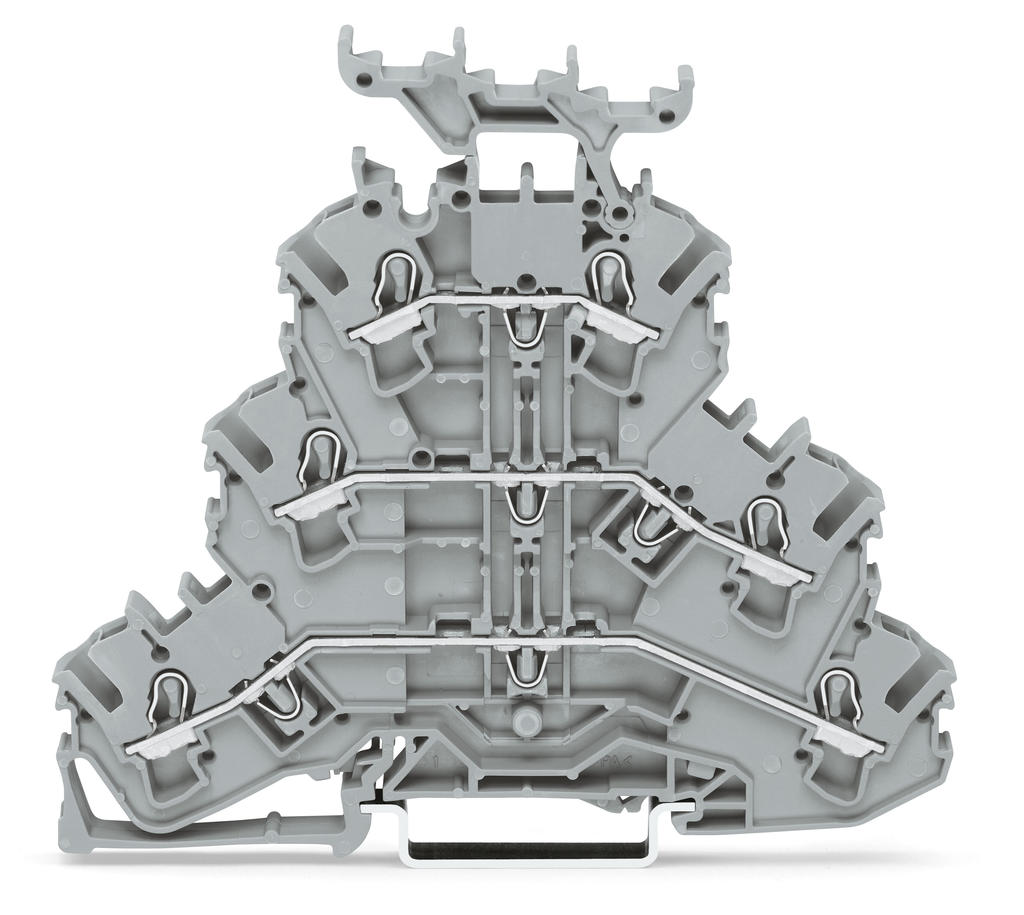

WAGO 2002-3231 TOPJOB S Triple-deck terminal block; Through/through/through terminal block; L/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687
Product Name : WAGO 2002-3231 TOPJOB S Triple-deck terminal block; Through/through/through terminal block; L/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP; 2,50 mm²; gray
Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 500V

Rated surge voltage (III/3) 6kV

Rated current 24A

Rated current 2 28A


Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 300V

Rated current UL (Use Group B) 20A

Rated voltage UL (Use Group C) 300V

Rated current UL (Use Group C) 20A


Ratings per CSA

Approvals per C22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 20A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 20A
