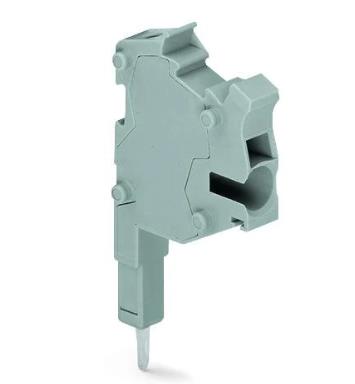

Electrical data

Ratings per IEC/EN

Nominal voltage (III/3)500V

Rated impulse voltage (III/3)6kV

Rated current24A

Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals perUL 1059

Rated voltage UL (Use Group B)300V

Rated current UL (Use Group B)20A

Rated voltage UL (Use Group C)300V

Rated current UL (Use Group C)20A

Ratings per CSA

Approvals perCSA 22.2 No 158

Rated voltage CSA (Use Group B)300V

Rated current CSA (Use Group B)20A

Rated voltage CSA (Use Group C)300V

Rated current CSA (Use Group C)20A

Connection data

Total number of connection points1

Total number of potentials1

Connection 1

Connection technologyPush-in CAGE CLAMP®

Actuation typeOperating tool

Connectable conductor materialsCopper

Nominal cross-section2.5 mm²

Solid conductor0.25 … 4 mm² / 22 … 12 AWG

Solid conductor; push-in termination0.75 … 4 mm² / 18 … 12 AWG

Fine-stranded conductor0.25 … 4 mm² / 22 … 12 AWG

Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm² / 22 … 14 AWG

Fine-stranded conductor; with ferrule; push-in termination1 … 2.5 mm² / 18 … 14 AWG

Note (conductor cross-section)Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

Strip length10 … 12 mm / 0.39 … 0.47 inches

Pole number1

Wiring directionSide-entry wiring
