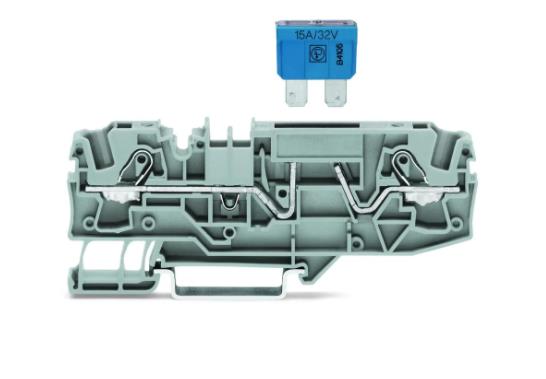

WAGO 2006-1681, 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; without blown fuse indication; 6 mm²; Push-in CAGE CLAMP; 6,00 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687
Product Name : WAGO 2006-1681, 2-conductor fuse terminal block; for automotive blade-style fuses; with test option; without blown fuse indication; 6 mm²; Push-in CAGE CLAMP; 6,00 mm²; gray
Directions

Electrical data

Fuse receptacle pluggable

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-3

Ratings (note) Electrical ratings are given by the fuse.

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 8kV

Rated current 25A

Ratings (note) 2 Blade-style fuses: Observe touch-proof protection for 42 V and higher voltages!

Rated current 2 30A

Operation status indicator none

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings per UL

Approvals per UL 1059

Rated voltage UL (Use Group B) 600V

Rated current UL (Use Group B) 30A

Rated voltage UL (Use Group C) 600V

Rated current UL (Use Group C) 30A

Ratings per CSA

Approvals per CSA 22.2 No 158

Rated voltage CSA (Use Group B) 600V

Rated current CSA (Use Group B) 30A

Rated voltage CSA (Use Group C) 600V

Rated current CSA (Use Group C) 30A
