Home > Products > WAGO > WAGO 279-901 2-conductor through terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; 1,50 mm²; gray

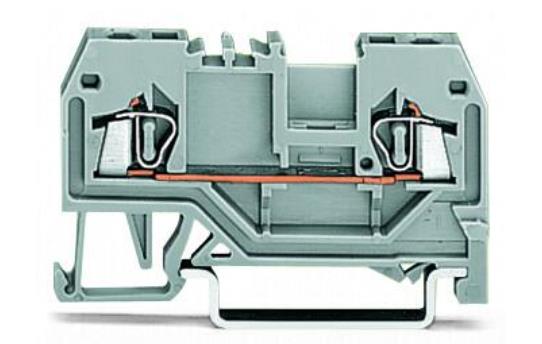

WAGO 279-901 2-conductor through terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; 1,50 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 279-901 2-conductor through terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; 1,50 mm²; gray

Directions

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-1

Nominal voltage (III/3) 800V

Rated impulse voltage (III/3) 8kV

Rated current 18A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Power loss

Power loss, per pole (potential) 0.593W

Rated current IN for specified power loss 18A

Resistance value for specified, current-dependent power loss 0.002Ω

Connection data

Total number of connection points 2

Total number of potentials 1

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5 mm² / 28 … 16 AWG

Fine-stranded conductor 0.08 … 1.5 mm² / 28 … 16 AWG

Strip length 8 … 9 mm / 0.31 … 0.35 inches

Wiring direction Front-entry wiring
