Ratings per IEC/EN

Ratings perIEC/EN 60947-7-1

Nominal voltage (III/3)500V

Rated surge voltage (III/3)6kV

Rated current20A

Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3

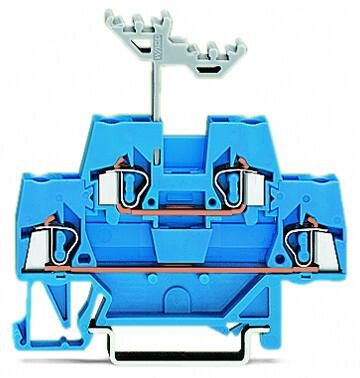

Connection data

Total number of connection points4

Total number of potentials2

Number of levels2

Connection 1

Connection technologyCAGE CLAMP®

Actuation typeOperating tool

Connectable conductor materialsCopper

Aluminum

Note on connectable conductor materialsTerminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.

It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::

2.5 mm² = 16 A

4 mm² = 22 A

Solid conductor0.08 … 2.5 mm² / 28 … 12 AWG
