Electrical data
IEC Approvals
| Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 800 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated current | 76 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Connection data
| Connection technology | CAGE CLAMP® |
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 16 mm² / 24 … 6 AWG |
| Fine-stranded conductor | 0.2 … 16 mm² / 24 … 6 AWG |

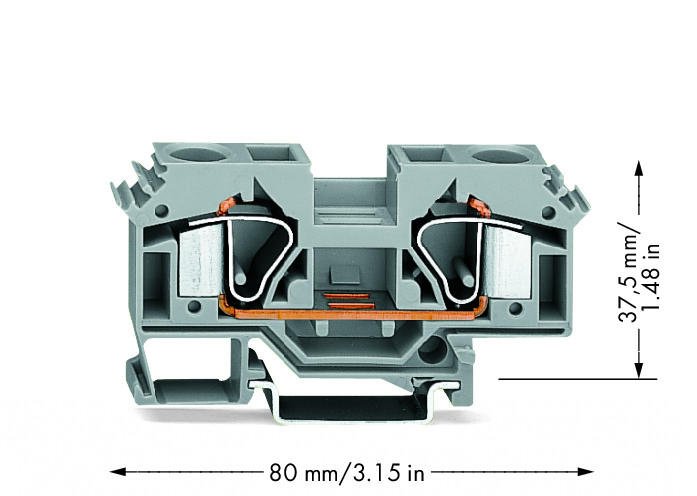

Physical data
| Width | 12 mm / 0.472 inch |
| Height | 80 mm / 3.15 inch |
| Depth from upper edge of DIN-rail | 37.5 mm / 1.476 inch |
Mechanical data
| Design | horizontal type |
| Mounting type | DIN-35 rail |
| Marking level | Side marking |
Material data
| Color | gray |
| Insulation material | Polyamide (PA66) |
| Fire load | 0.467 MJ |
| Weight | 31.8 g |
