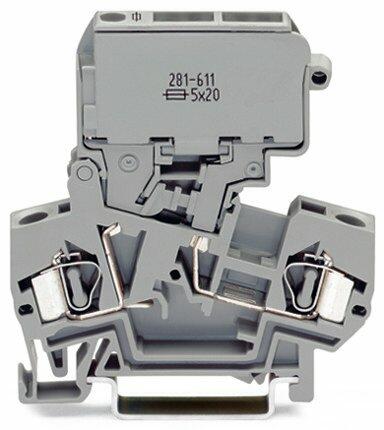

Electrical data

Fuse receptacle pivoting

Power loss (max.) Pl (max.) (note) When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.

Power loss Pl (max.) 2.5W

Power loss Pl (note) Overload and short circuit protection (Individual arrangement)

Power loss Pl 2 (max.) 1.6W

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-3

Ratings (note) Electrical ratings are given by the fuse.

Nominal voltage (III/3) 800V

Rated surge voltage (III/3) 8kV

Rated current 10A

Connection data

Total number of connection points 2

Total number of potentials 2

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Aluminum

Note on connectable conductor materials Terminating Aluminum Conductors

WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination.

“Alu-Plus” Contact Paste Advantages:

Automatically destroys the oxide film during clamping.

Prevents fresh oxidation at the clamping point.

Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).

Provides long-term protection against corrosion.

Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.

For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.

It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::

2.5 mm² = 16 A

4 mm² = 22 A

Solid conductor 0.08 … 4 mm² / 28 … 12 AWG

More

Physical data

Width 8 mm / 0.315 inch

Height 60 mm / 2.362 inch

Depth from upper edge of DIN-rail 60 mm / 2.362 inch

Mechanical data

Design angled

Mounting type DIN-35 rail

Marking level Center marking

Art der Sicherung Cylindrical fuse 5 x 20 mm

Material data

Color gray

Insulation material Polyamide (PA66)

Flammability class per UL94 V0

Fire load 0.327MJ

Weight 17.3g
