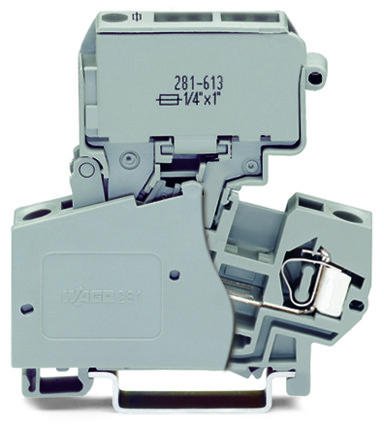

Details
Electrical data
| Fuse receptacle | pivoting |
| Power loss (max.) Pl (max.) (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
| Power loss Pl (max.) | 2.5W |
| Power loss Pl (note) | Overload and short circuit protection (Individual arrangement) |
| Power loss Pl 2 (max.) | 1.6W |
More
IEC Approvals
| Ratings per | IEC/EN 60947-7-3 |
| Ratings (note) | Electrical ratings are given by the fuse. |
| Rated voltage (III / 3) | 800V |
| Rated surge voltage (III/3) | 8kV |
| Rated current | 10A |
More
Connection data
| Total number of connection points | 2 |
| Total number of potentials | 2 |
| Number of levels | 1 |
Connection 1
| Connection technology | CAGE CLAMP® |
| Actuation type | Operating tool |
| Connectable conductor materials | Copper Aluminum |
| Note on connectable conductor materials | Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste is used for termination. “Alu-Plus” Contact Paste Advantages:
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste. For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
More
Physical data
| Width | 10 mm / 0.394 inch |
| Height | 60 mm / 2.362 inch |
| Depth from upper edge of DIN-rail | 60 mm / 2.362 inch |
Mechanical data
| Design | angled |
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
| Art der Sicherung | Cylindrical fuse ¼" x 1" |
Material data
| Color | gray |
| Insulation material | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.39MJ |
| Weight | 19.6g |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| PU (SPU) | 50 Stück |
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4045454871499 |
