WAGO 282-870 3-conductor disconnect/test terminal block; e.g., current transformer circuits; with touch-proof test sockets; for 4 mm Ø test plugs; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; 6,00 mm²; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

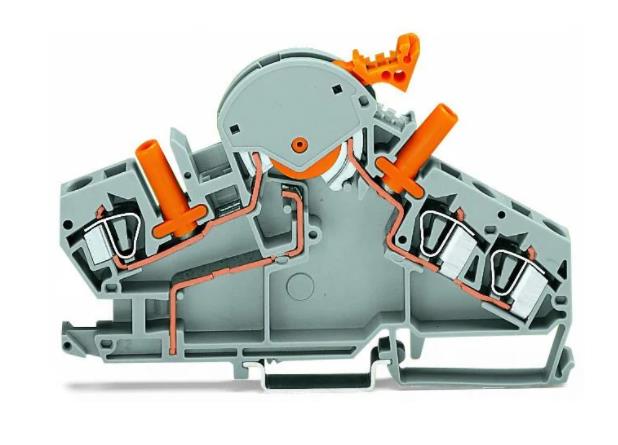

Product Name : WAGO 282-870 3-conductor disconnect/test terminal block; e.g., current transformer circuits; with touch-proof test sockets; for 4 mm Ø test plugs; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; 6,00 mm²; gray

Directions

Electrical data

Verlustleistung, pro Pol (Potential) 0.702W

Bemessungsstrom IN zur Verlustleistungsangabe 30A

Widerstandswert zur stromabhängigen Verlustleistungsangabe 0.001Ω

Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 30A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 3

Total number of potentials 2

Number of levels 1

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.2 … 6 mm² / 24 … 10 AWG

Fine-stranded conductor 0.2 … 6 mm² / 24 … 10 AWG

Strip length 12 … 13 mm / 0.47 … 0.51 inches

Wiring direction Front-entry wiring
