Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated surge voltage (III/3) 6kV

Rated current 32A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 9

Total number of potentials 9

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 4 mm²

Solid conductor 0.08 … 4 mm² / 28 … 12 AWG

More

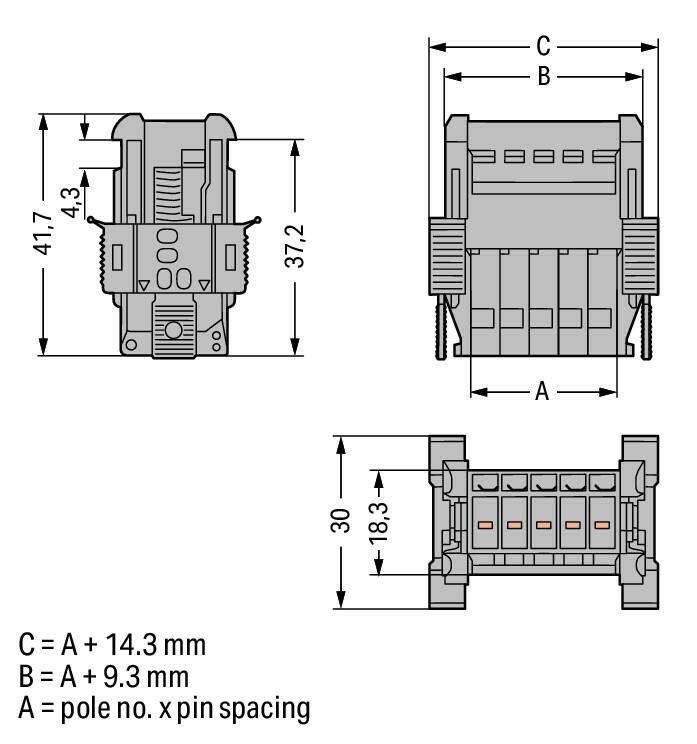

Physical data

Pin spacing 5 mm / 0.197 inch

Width 59.3 mm / 2.335 inch

Height 30 mm / 1.181 inch

Depth 41.7 mm / 1.642 inch

Mechanical data

Variable coding Ja

Mounting type Snap-in flange variant

Plug-in connection

Contact type (pluggable connector) Male connector/plug

Connector (connection type) for conductor

Material data

Note on material data Information on material data can be found here

Color gray

Insulation material Polyamide (PA66)

Flammability class per UL94 V0

Fire load 0.665MJ
