Ratings per IEC/EN
Nominal voltage (III/3) 500V
Rated surge voltage (III/3) 6kV
Rated current 32A
Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3
Connection data
Total number of connection points 12
Total number of potentials 12
Connection 1
Connection technology CAGE CLAMP®
Actuation type Operating tool
Connectable conductor materials Copper
Nominal cross-section 4 mm²
Solid conductor 0.08 … 4 mm² / 28 … 12 AWG
More
Physical data
Pin spacing 5 mm / 0.197 inch
Width 63.6 mm / 2.504 inch
Height from the surface 18.3 mm / 0.72 inch
Depth 40.2 mm / 1.583 inch
Mechanical data
Variable coding Ja
Mounting type Snap-in foot
Plug-in connection

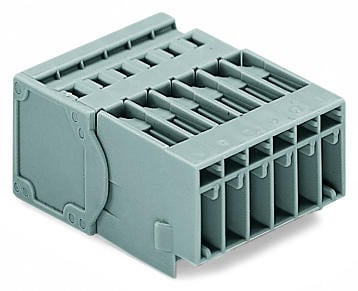

Contact type (pluggable connector) Male connector/plug
Connector (connection type) for conductor
