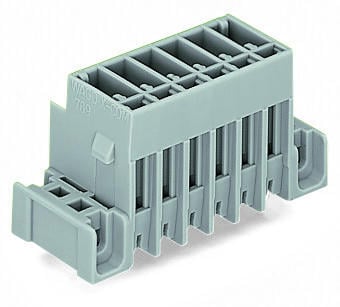

Electrical data

Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated impulse voltage (III/3) 6kV

Rated current 32A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of connection points 13

Total number of potentials 13

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Nominal cross-section 4 mm²

Solid conductor 0.08 … 4 mm² / 28 … 12 AWG

More

Physical data

Pin spacing 5 mm / 0.197 inch

Width 80.4 mm / 3.165 inch

Height from the surface 18.3 mm / 0.72 inch

Depth 40.2 mm / 1.583 inch

Mechanical data

Variable coding Yes

Direct ground contact to DIN-rail/drilled hole/housing No

Mounting type Mounting flange

Plug-in connection

Contact type (pluggable connector) Male connector/plug

Connector (connection type) for conductor
