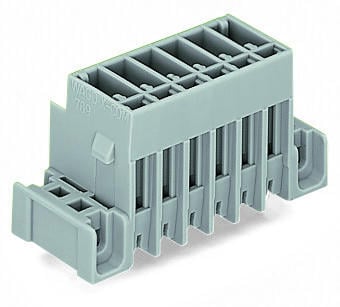

Ratings per IEC/EN
Nominal voltage (III/3) 250V
Rated impulse voltage (III/3) 4kV
Rated voltage (III/2) 500V
Rated impulse voltage (III/2) 4kV
Rated current 32A
More
Connection data
Total number of potentials 7
Number of levels 1
Preceding contacts 0
Connection 1
Pole number 7
Physical data
Pin spacing 5 mm / 0.197 inch
Width 49.7 mm / 1.957 inch
Height from the surface 22.2 mm / 0.874 inch
Depth 18.3 mm / 0.72 inch
Mechanical data
Variable coding Yes
Mounting type Mounting flange
Plug-in connection
Contact type (pluggable connector) Male connector/plug
Connector (connection type) for PCB
Mismating protection No
Mating direction to the PCB 90°
PCB contact
PCB Contact THT
