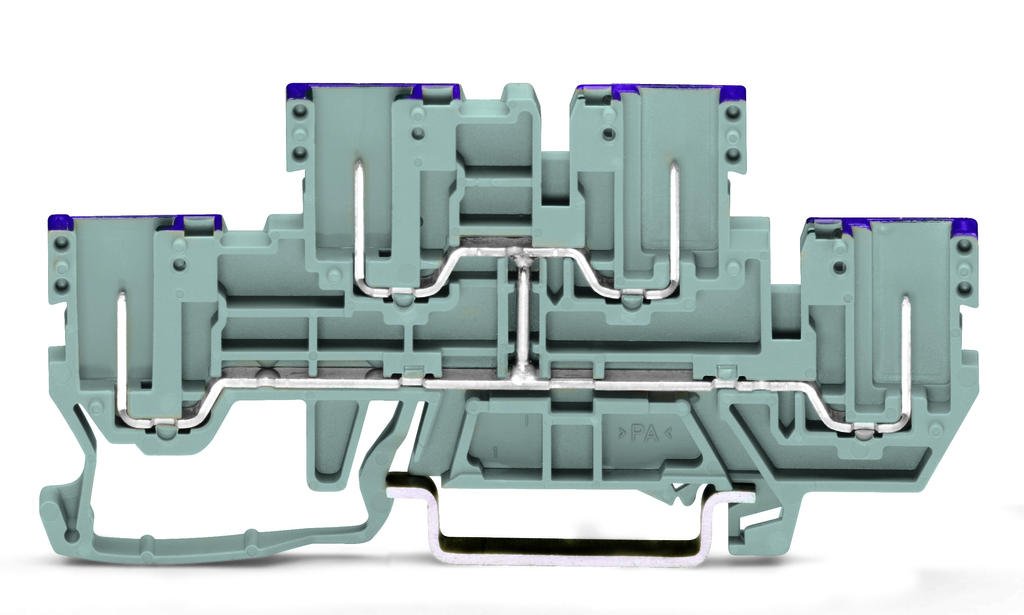

WAGO 870-158 X-COM 4-pin, double-deck carrier terminal block; 4-pin through terminal block; L; internal commoning; female plug conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; gray

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO 870-158 X-COM 4-pin, double-deck carrier terminal block; 4-pin through terminal block; L; internal commoning; female plug conductor entry with violet marking; for DIN-rail 35 x 15 and 35 x 7.5; gray

Directions

Electrical data

Ratings per IEC/EN

Nominal voltage (III/3) 500V

Rated surge voltage (III/3) 6kV

Rated current 16A

Legend (ratings) (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection data

Total number of potentials 1

Number of levels 2

Connection 1

Wiring direction Front-entry wiring

Physical data

Width 5 mm / 0.197 inch

Height 88.6 mm / 3.488 inch

Depth from upper edge of DIN-rail 37.1 mm / 1.461 inch

Mechanical data

Potentialkennzeichnung L

Design horizontal type

Mounting type DIN-35 rail

Marking level Side marking
