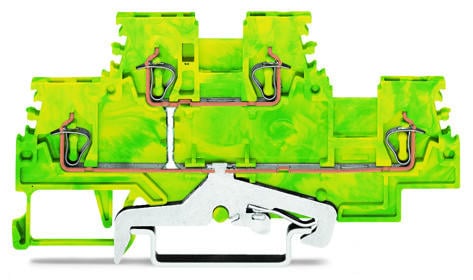

WAGO Double-deck terminal block; 4-conductor ground terminal block; 1.5 mm²; PE; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-507

WAGO 3-conductor ground terminal block; 1.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-687

Product Name : WAGO Double-deck terminal block; 4-conductor ground terminal block; 1.5 mm²; PE; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; green-yellow 279-507

Directions

Details

Electrical data

Ratings per IEC/EN

Ratings per IEC/EN 60947-7-2

Connection data

Total number of connection points 4

Total number of potentials 1

Number of levels 2

Connection 1

Connection technology CAGE CLAMP®

Actuation type Operating tool

Connectable conductor materials Copper

Solid conductor 0.08 … 1.5 mm² / 28 … 16 AWG

Fine-stranded conductor 0.08 … 1.5 mm² / 28 … 16 AWG

Physical data

Width 4 mm / 0.157 inch

Height 85 mm / 3.346 inch

Depth from upper edge of DIN-rail 39 mm / 1.535 inch

Mechanical data

Potentialkennzeichnung PE

Design horizontal type

Mounting type DIN-35 rail

Marking level Side marking

Material data

Color green-yellow

Insulation material Polyamide (PA66)

Flammability class per UL94 V0

Fire load 0.138MJ

Weight 11.6g

Commercial data

Product Group 1 (Rail Mounted Terminal Blocks)

PU (SPU) 50 Stück

Packaging type box

Country of origin CN

GTIN 4050821227267
